Z108
8Inch Dual Screen Mobile POS Terminal with 80mm thermal printer

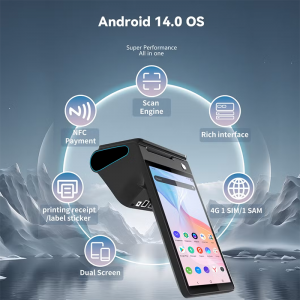

● Stable Android 14 programmable OS
● Embedded 58mm/80mm thermal printer , receipt printing
● NFC and QR Code payment methods
● 4GB RAM+32 GB flash memory

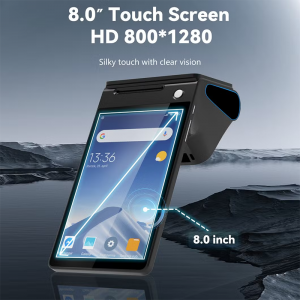

● 8” IPS LCD 800x 1280, capacitive Five-Point Touch
● Long battery working time >8 hours
Function
Introduction
Z108 is a non-EMV 8inch touch screen mobile POS printer based on Android 14,Equipped with the Octa core process CPU, 80MM thermal printer. It work as a cost-effective solution,delivering greater performance in ordering and sale. It takes an embedded 80mm/s fast thermal printer,support dual printing modes for ticket and label printing. The high capacity 7.6V/3600mAh battery ensures long-time working demand; detachable battery is convenient for recharging and continuous operations. With the e-commerce developing rapidly ,the mobile smart POS systems is widely applied in Queuing management, ordering, online order taking, checkout or loyalty management.
Fast QR-Code scanning payment experience
Professional 2D scan engine is optional , which could capture 1D/2D barcodes even if scratched, folded or stained.Also the mini dynamic customer display will show the QR code for customers .Tailored Android POS printer for the pioneer mobile ticketing, It delivers efficient and simplified operation experience for various vertical applications ,includes the retail, restaurants, supermarket, and delivery food .
Applicable to Many More Scenarios
Z108 is handheld Android POS device, which support a collection of Google applications including Google accounts, Google Play Store, Google Maps, Google Pay etc. This POS terminal deliver a great user experience with maximum software compatibility and user friendly .Except the ticketing orders, Z108 POS printer provide more possibilities with multi-functional modules ,such as front barcode scanner ,fingerprint scanner and bigger flash memory ,which is required by banks ,government and law enforcement.
High voltage battery for whole day work

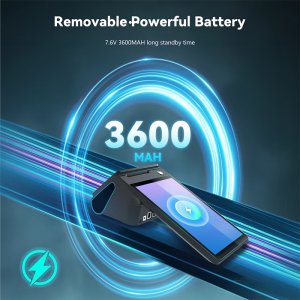

Big capacity 7.6V/3600mAh removable battery ensures long-time outdoor operations; detachable battery is convenient and fast for you to replace it.Continuously work for 10 hours even in most demanding situations, and still print receipts at high speed when the battery is low.
Advanced ergonomic design for mobile business

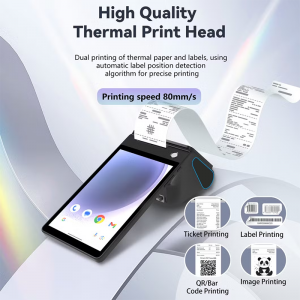

Built-in high speed 58mm/80mm thermal printer head helps improve work efficiency ,support 40mm diameter larger paper capacity .The security PSAM module card slot,protected by a dedicated cover is also optional to comply with certain fiscal regulations.3.95inch dynamic customer display help to show clear payment details with customers .
The Full range of wireless Connectivity
Besides stable SIM slots and PSAM network, Dual bands Wi-Fi and Bluetooth are also easy to access. Z108 will performance perfectly in different working environments ,no matter what kind of communication method you prefer to.And the customer could scan the NFC card with the second mini display, which shorten the check out time .
| Operation System | |
| OS | Android 14 OS with GMS certified |
| GMS certified | Support |
| CPU | Octa core processor ，up to 2.0 Ghz |
| Memory | 4GB ROM+32GB/64GB Flash |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 8″ IPS Display, 800×1280 pixels ,multi-point Capacitive Touch screen |
| Customer display (optional) | 3.95inch mini LCD Display |
| Buttons / Keypad | ON/OFF button ,Scan button |
| Card readers | Contactless Card , Support ISO / IEC 14443 A&B，Mifare，felica card conform to EMV / PBOC PAYPASS standard |
| Camera | rear 5 megapixels, with flash and auto focus function |
| Printer | Built in fast-speed thermal printerPaper roll diameter: 40mmPaper width: 58mm |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | 7.6V, 3600mAh ,Rechargable Lithium battery |
| Symbologies | |
| Bar code scanner | 1D 2D code scanner via camera |
| Fingerprint | Optional |
| Communication | |
| Bluetooth® | Bluetooth®5.0 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20TDD-LTE :B38/B39/B40/B41 |
| GPS | A-GPS, GNSS, BeiDou satellite navigation |
| I/O Interfaces | |
| USB | USB type-C *1 |
| POGO PIN | Pogo Pin bottom: Charging via cradle |
| SIM Slot | SIM (nano) or E-SIM x 2 +SAM*1+ Micro SD |
| Enclosure | |
| Dimensions( W x H x D ) | 273.2mm x 125mm x 95mm |
| Weight | 870g (with battery) |
| Durability | |
| Drop Specification | 1m |
| Sealing | IP54 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Z108 TerminalUSB Cable (Type C)Adaptor (Europe)Printing paper |
| Optional Accessory | Hand StrapCharging dockingSilicon case |
