Z100
10Inch Dual Screen Desktop POS Terminal With 80MM Thermal Printer
● Stable Android 13 programmable OS
● Embedded 58mm/80mm thermal printer , receipt printing
● MSR/IC/NFC and QR Code payment methods
● 4GB RAM+32 GB flash memory
● 10” IPS LCD 800x 1280, capacitive Five-Point Touch
● Long battery working time >8 hours
Function
Introduction
Z100 is a non-EMV 8inch touch screen mobile POS printer based on Android 13,Equipped with the Octa core process CPU, 80MM thermal printer. It work as a cost-effective solution,delivering greater performance in ordering and sale. It takes an embedded 80mm/s fast thermal printer,support dual printing modes for ticket and label printing. The high capacity 22.4V/1700mAh battery ensures long-time working demand; detachable battery is convenient for recharging and continuous operations. With the e-commerce developing rapidly ,the mobile smart POS systems is widely applied in Queuing management, ordering, online order taking, checkout or loyalty management.
Fast QR-Code scanning payment experience
Professional 2D scan engine is optional , which could capture 1D/2D barcodes even if scratched, folded or stained.Also the mini dynamic customer display will show the QR code for customers .Tailored Android POS printer for the pioneer mobile ticketing, It delivers efficient and simplified operation experience for various vertical applications ,includes the retail, restaurants, supermarket, and delivery food .
Applicable to Many More Scenarios
Z100 is desktop Android POS device, which support a collection of Google applications including Google accounts, Google Play Store, Google Maps, Google Pay etc. This POS terminal deliver a great user experience with maximum software compatibility and user friendly .Except the ticketing orders, Z100 POS printer provide more possibilities with multi-functional modules ,such as front barcode scanner ,fingerprint scanner and bigger flash memory ,which is required by banks ,government and law enforcement.
The Full range of wireless Connectivity

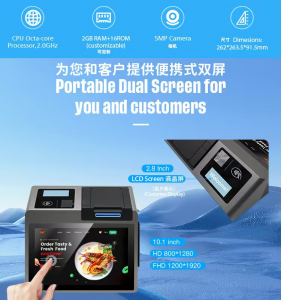

Besides stable SIM slots and PSAM network, Dual bands Wi-Fi and Bluetooth are also easy to access. Z100 will performance perfectly in different working environments ,no matter what kind of communication method you prefer to.And the customer could scan the NFC card with the second mini display, which shorten the check out time .
| Operation System | |
| OS | Android 13 OS with GMS certified |
| GMS certified | Support |
| CPU | Octa core processor ，up to 2.0 Ghz |
| Memory | 4GB ROM+32GB/64GB Flash |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 10″ IPS Display, 800×1280 pixels(1920*1200 optional) ,multi-point Capacitive Touch screen |
| Customer display (optional) | Dot-lattice screen |
| Buttons / Keypad | ON/OFF button |
| Card readers | Contactless Card , Support ISO / IEC 14443 A&B，Mifare，felica card conform to EMV / PBOC PAYPASS standard |
| Camera | rear 5 megapixels, with flash and auto focus function |
| Magnetic card reader | Support |
| Chip card reader | Support |
| Printer | Built in fast-speed thermal printerPaper roll diameter: 40mmPaper width: 58mm/80MM |
| Indicator Type | LED, Speaker, Vibrator |
| Symbologies | |
| Bar code scanner | 1D 2D code scanner via camera |
| Fingerprint | Optional |
| Communication | |
| Bluetooth® | Bluetooth®5.0 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/B20TDD-LTE :B38/B39/B40/B41 |
| GPS | A-GPS, GNSS, BeiDou satellite navigation |
| I/O Interfaces | |
| USB | USB type-C *1,Type-A*4 |
| I/O | RJ45*1, RJ11*1, RJ12*1, Mini USB *1 |
| POGO PIN | Pogo Pin bottom: Charging via cradle |
| SIM Slot | SIM (nano) x 2 +PSAM*2+ Micro SD |
| Enclosure | |
| Dimensions( W x H x D ) | 262.2mm x 263mm x 91.5mm |
| Weight | 870g (with battery) |
| Durability | |
| Drop Specification | 1m |
| Sealing | IP54 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Z100 TerminalUSB Cable (Type C)Adaptor (Europe)Printing paper |
