S80

4G handheld Android ticketing POS printer

● Latest Android 11 programmable OS
● Embedded 58mm high speed thermal printer
● NFC and QR Code payment methods
● 2+16 GB memory
● 5.5” IPS LCD 1280 x 720 ,capacitive Five-Point Touch
● Long battery working time >8 hours


Function

Android 11
Android 11
5.5inch Display
5.5inch Display
4G LTE
4G LTE
NFC reader
NFC reader
Thermal Printer
Thermal Printer
QR-code Scanner
QR-code Scanner
High-Capacity Battery
High-Capacity Battery
Wi-Fi
Wi-Fi
GPS
GPS
Fingerprint
Fingerprint

Product Detail

Technical data

Application

Product Tags

Introduction

S80 is a 5.5inch non-banking mobile POS printer based on Android 11. It takes an 80mm/s fast thermal printer with the advantages of low noise and low power consumption.The large capacity battery ensures continuous operations through an entire shift so you can process daily work efficiently.With the digital business developing rapidly ,the smart POS systems is widely applied in Queuing management, ordering, online order taking, checkout or loyalty management.

Quickly QR-Code payment experience

Tailored POS printer for the pioneer mobile payment , S80 equipped the NFC card reader,barcode scanner and adopt high speed thermal printer .It delivers efficient and simplified business experience for various vertical applications ,includes the retail, restaurants, supermarket, and delivery food .

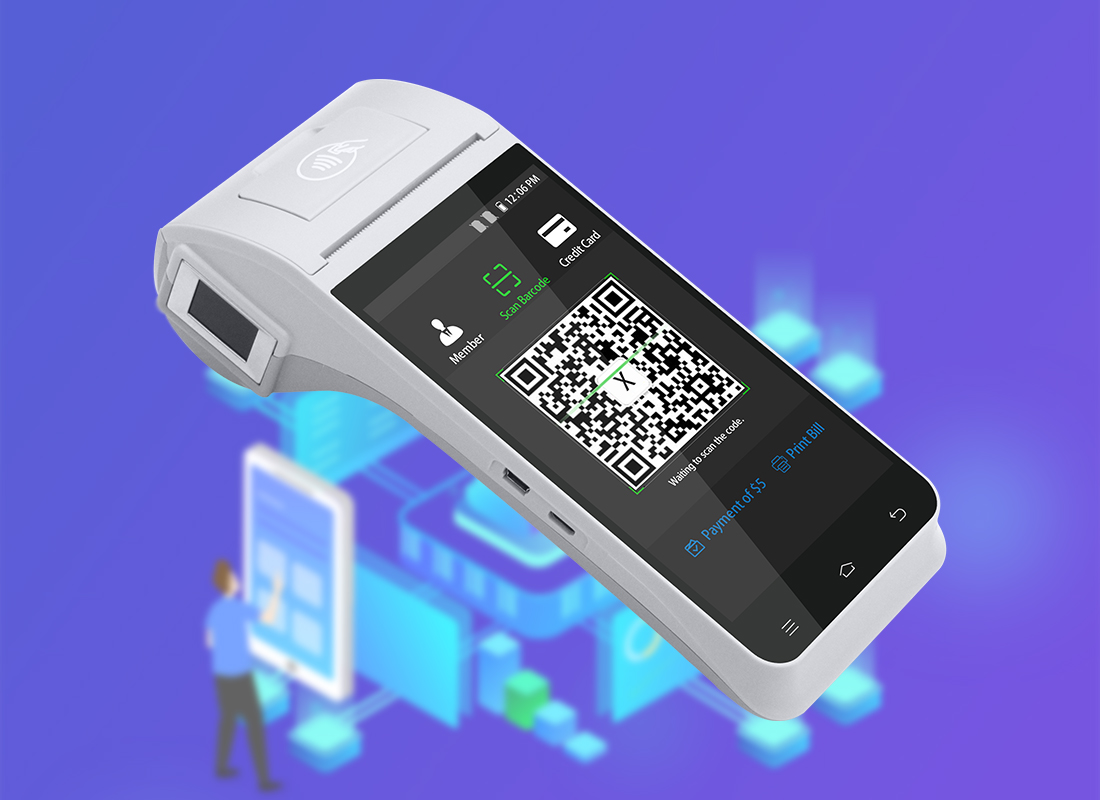

S80 is 5.5inch android POS terminal with barcode scanner

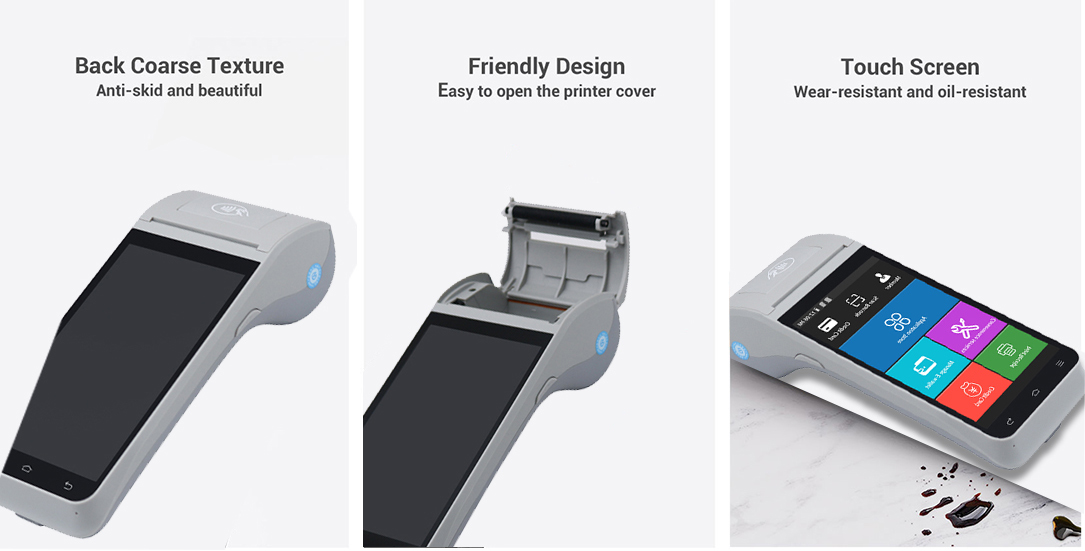

S80-Android-POS-Design

Clearer and Faster Printing performance

Dual printing mode for ticket and label printing, with advanced label position auto-detection algorithm for a more accurate printing.

Rapidly increasing demand in digital service

Today digital transformation of business is increasingly important, S80 delivers a new possibility  in a variety of industrial scenarios, such as online food ordering and payment, logistic delivery, queuing, mobile top-up, utilities, lotteries, member points, parking charges, etc

mailun1
S80-Android-POS-CONNECTION

Premium ergonomic design for handheld Scenario

Not limited to takeaway ordering, S80 POS printer embedded multi-functional modules for more special demands, such as Code payment, cash payment, biometric payment and contactless payment .

The Full range of wireless Connectivity

Besides stable 4G/3G/2G network, Wi-Fi and Bluetooth are also easy to access. S80 will performance perfectly in different environments no matter what kind of communication method you're using.

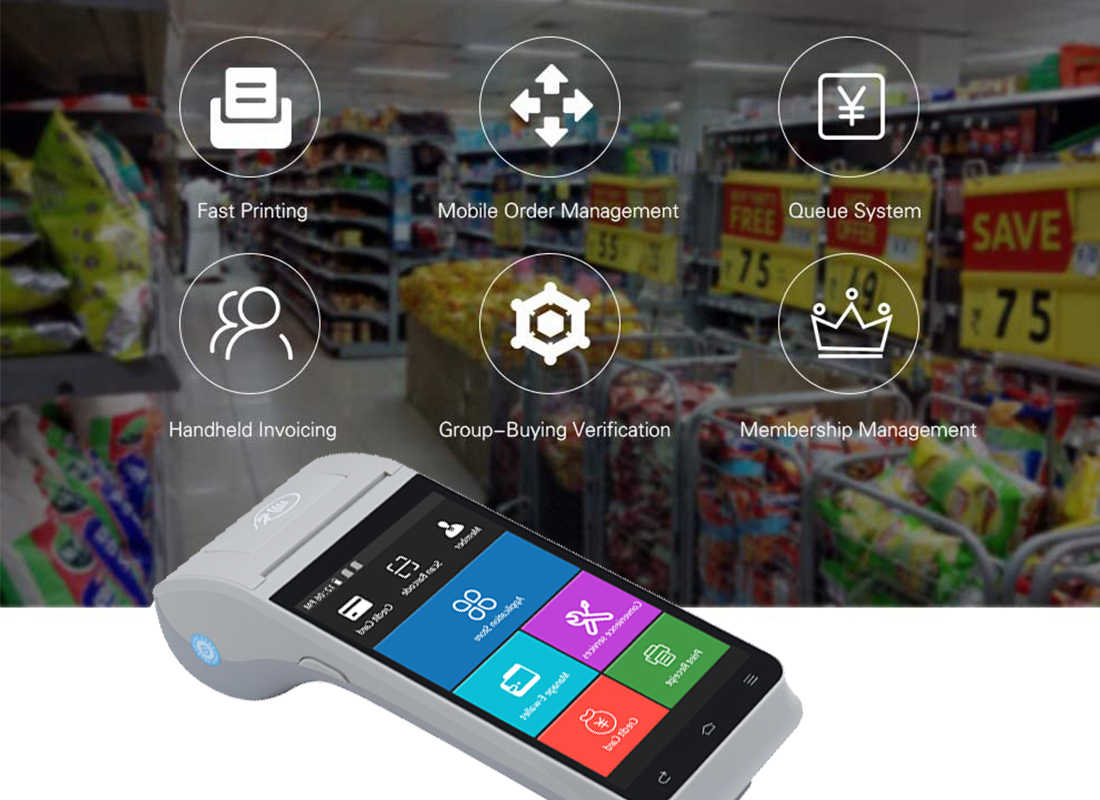

S80-POS-systems-Printer

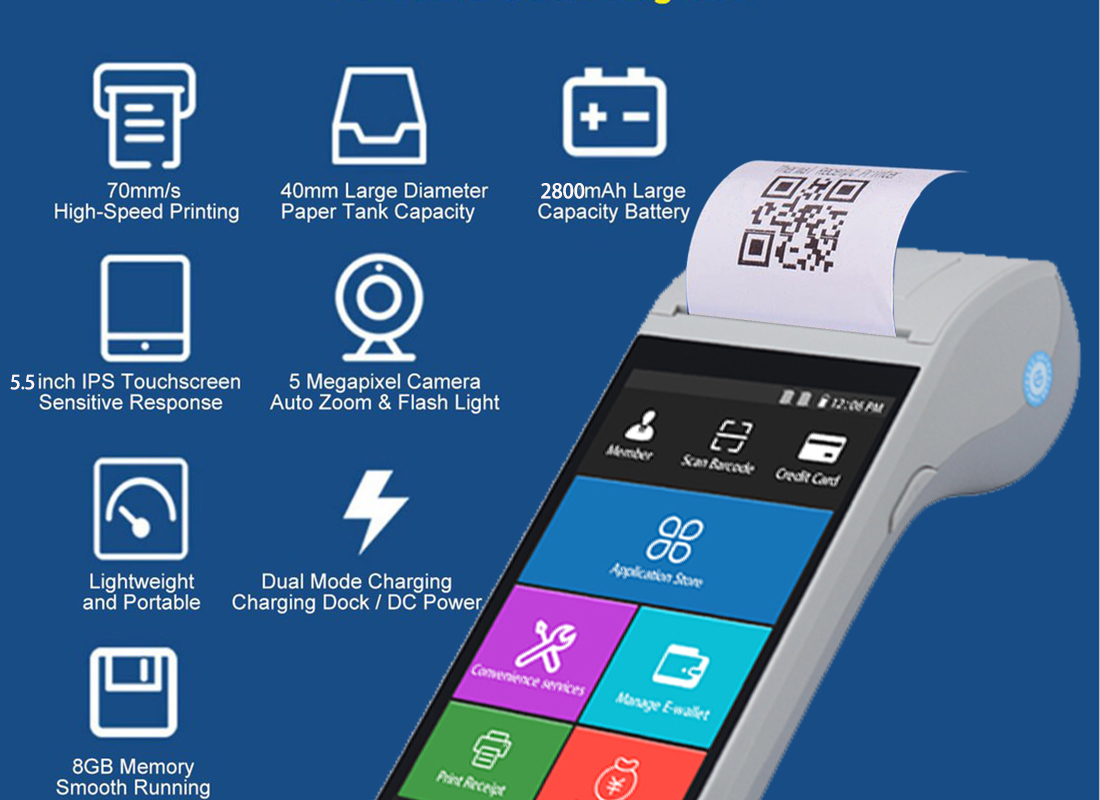

S80POS-systems-Printer_01

Big capacity battery for whole day work

Continuously work for 12 hours even in most demanding situations, and still print receipts at high speed when the battery is low.

Extended interfaces and fiscal compliance

To service industry specific requirements, I2C,UART and USB hardware interfaces have been reserved. An application module card slot, protected by a dedicated case is also embedded to comply with special fiscal regulations.

*Only Industry Tailored Version supports.

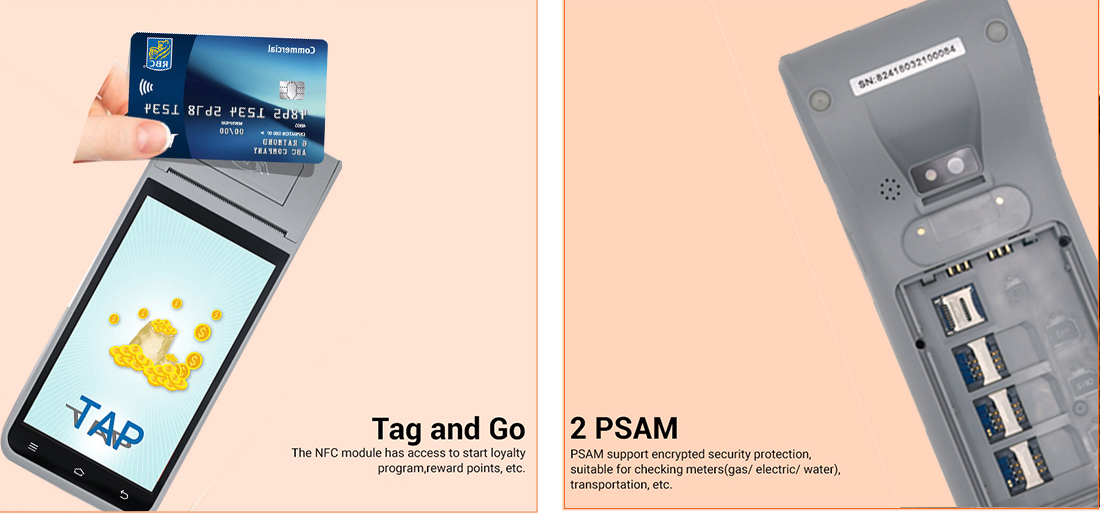

S80-Android-POS-NFC

  • Previous:
  • Next:

  • Operation System
    OS Android 11
    GMS certified Support
    CPU Quad core processor ,up to 1.4Ghz
    Memory 2+16 GB
    Languages support English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
    Hardware specification
    Screen Size 5.5″ IPS Display, 1280×720 pixels ,multi-point Capacitive Touch screen
    Buttons / Keypad ON/OFF button
    Card readers Contactless Card , Support ISO / IEC 14443 A&B,Mifare,felica card conform to EMV / PBOC PAYPASS standard
    Camera rear 5 megapixels, with flash and auto focus function
    Printer Built in fast-speed thermal printerPaper roll diameter: 40mmPaper width: 58mm
    Indicator Type LED, Speaker, Vibrator
    Battery 7.4V, 2800mAh ,Rechargable Lithium battery
    Symbologies
    Bar code scanner 1D 2D code scanner via camera
    Fingerprint Optional
    I/O Interfaces
    USB USB type-C *1, Micro USB *1
    POGO PIN Pogo Pin bottom: Charging via cradle
    SIM Slot Dual SIM Slots
    Expansion Slot Micro SD, up to 128 GB
    Audio 3.5mm Audio Jack
    Enclosure
    Dimensions( W x H x D ) 199.75mm x 83mm x 57.5mm
    Weight 450g (with battery)
    Durability
    Drop Specification 1.2m
    Sealing IP54
    Environmental
    Operating temperature -20°C to 50°C
    Storage temperature - 20°C to 70°C (without battery)
    Charging temperature 0°C to 45°C
    Relative Humidity 5% ~ 95% (Non-Condensing)
    What comes in the box
    The standard package contents S80 TerminalUSB Cable (Type C)Adaptor (Europe)Lithium Polymer BatteryPrinting paper
    Optional Accessory Hand StrapCharging dockingSilicon case

    Specially designed for field workers under tough working environment both indoors and outdoors. Good choice for fleet management ,warehousing, manufacturing, logistics industry etc.
