C6200

5.5 inch Qualcomm® Snapdragon™ Rugged handheld PDA scanner

● Qualcomm® Snapdragon™ 662 (Octa-core 2.0 GHz), Rugged handheld PDA
● Android 11, GMS certified
● 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
● Zebra Infrared 1D/2D Barcode Reader for data collection
● IP65 waterproof and dustproof
● Big capacity rechargeable 44200mAh battery
● Versatile optional Accessories for industrial applications


Function

Android 11
Android 11
4G LTE
4G LTE
Wi-Fi
Wi-Fi
NFC
NFC
GPS
GPS
1.2m Drop
1.2m Drop
High-Capacity Battery
High-Capacity Battery
Logistic
Logistic
Warehousing
Warehousing
Field service
Field service

Product Detail

Specification datasheet

Application

Product Tags

Introduction

Hosoton C6200 Rugged PDA is comply with MIL-STD-810 drop and shock proof, IP65 waterproof rated and equipped with a high strength Gorilla Glass touch panel, to help prevent shattered glass and easy scratches. And it come with an Android 11 OS , include features such as built-in NFC, 4G LTE, UHF ,Fingerprint laser barcode scanner. High performance and economic cost help C6200 become a ideal tool for industrial applications including Warehousing, Logistics, and commercial applications like Inventory Management, Retail, and Hospitality.

Strong Computing Performance with Qualcomm® Snapdragon™ 662

Tailored POS printer for the pioneer mobile payment, S80 equipped the NFC card reader, barcode scanner and adopt high speed thermal printer. It delivers efficient and simplified business experience for various vertical applications, includes the retail, restaurants, supermarket, and delivery food .

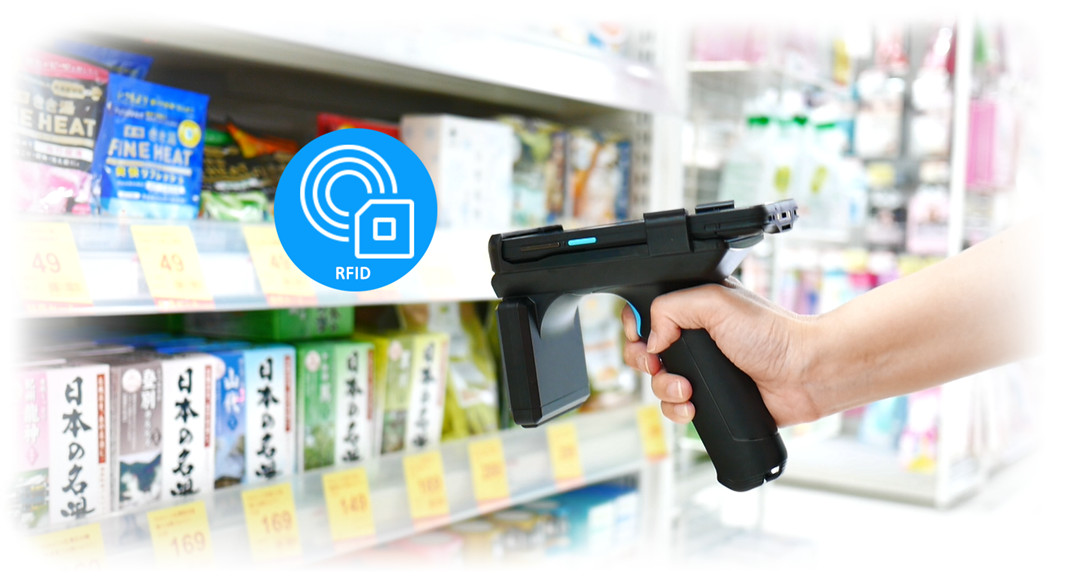

C6200-Handheld-Android-computer-RFID-reader

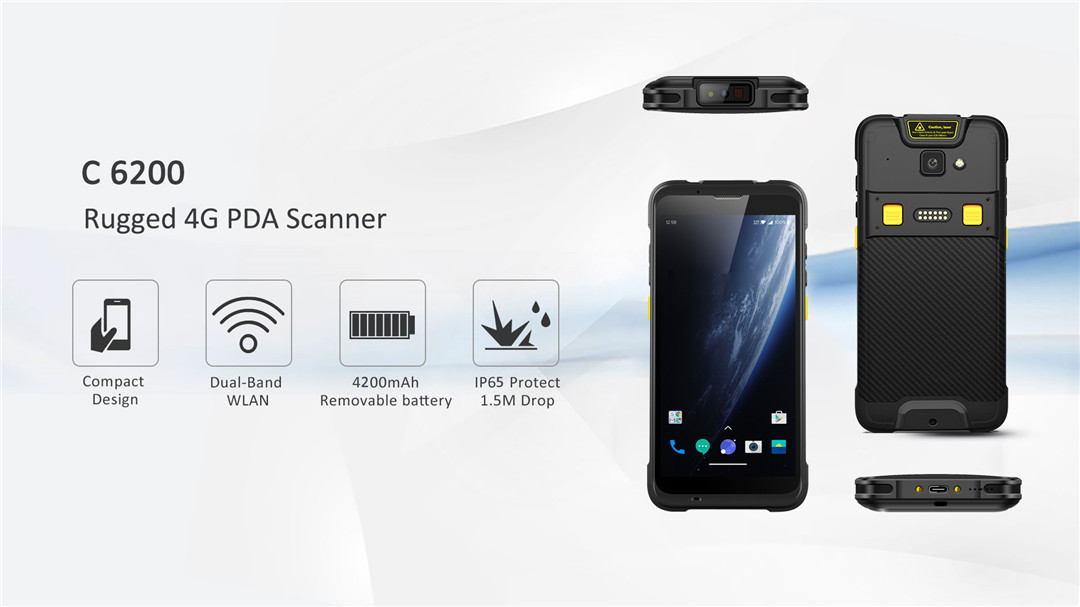

C6200-Handheld-Android-rugged-computer-4G-pda

Ultimate Data Capture Capabilities

The C6200 integrated with optional 2D Zebra scanning engine featuring a laser aimer that enables the reading of high-resolution codes. Also the 13 MP rear camera is useful for data collection and recording, the C6200 with touch screen suits modern filed workers and mobile business applications.

Tailored to survive personal digital assistant

Sealed to IP65, the C6200 rugged portable PDA is built to withstand harsh environments protect against water and dust. Compliant with MIL-STD-810G standard, it can work in extreme temperatures ranging from -10°C to 50°C and endure shock, vibration, and 1.2m drops.

C6200-Handheld-Android-rugged-computer-barcode-reader
C6200-Handheld-rugged-computer-barcode-scanner

All-In-One Functionality for diverse applications

The C6200 is possible to equip with professional Zebra 1D/2D scanning engine , as well as an integrated UHF/NFC RFID reader/writer, fingerprint, Volume Measurement module and a high-resolution 13MP camera in a compact mini device. Besides, excellent data speeds with Bluetooth , WiFi dual bands and 4G connectivity, the C6200 is an cost-effective mobile PDA terminal for your enterprise.

Ergonomic Gun Grip Design for portability

Adding extra values to your device via the unique UHF RFID gun grip (optional). With the portable gun grip, it provide a comfortable way to process standard barcode scanning, RFID scanning or 2D long-range scanning logistic tracking and warehousing solutions.

C6200-Handheld-Android-rugged-computer-Application

  • Previous:
  • Next:

  • Operation System
    OS Android 11; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
    GMS certified GMS certified and AER
    CPU 2.0GHz, Snapdragon™ 662 Octa-core CPU (2.0 GHz)
    Memory 3 GB RAM / 32 GB Flash (4+64GB optional)
    Languages support English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
    Hardware specification
    Screen Size 5.5-inch high definition full display (18:9), IPS IGZO 1440 x 720
    Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
    Buttons / Keypad 1 power key, 2 scan keys, 2 volume keys
    Camera rear 13 megapixels, with flash and auto focus function
    Indicator Type  LED, Speaker, Vibrator
    Battery  Removable main battery (normal version:4420 mAh ; Android 11 with fingerprint / built-in UHF / volume measurement version: 5200mAh )
    Sensor Accelerometer sensor, light sensor, proximity sensor, gravity sensor
    Symbologies (optional)
    1D Barcodes 1D: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic
    2D Barcodes 2D: PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc
    HF RFID Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2
    Volume Measurement Measured distance 40m-4m
    Communication
    Bluetooth® Bluetooth®5
    WLAN Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency
    WWAN (Europe, Asia) GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE :B1/B3/B5/B7/B8/B20/B38/B39/B40/B41
    WWAN (America) LTE:B2/B4/B5/B7/B8/B12/B13/B17/B28A/B28B/B38
    GPS GPS (AGPs), Beidou navigation, error range ± 5m
    I/O Interfaces
    USB USB Type-C, USB 3.1, OTG, extended thimble;
    POGO PIN PogoPin bottom: Charging via cradle
    SIM Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
    Expansion Slot MicroSD, up to 256 GB
    Audio One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones
    Enclosure
    Dimensions ( W x H x D ) 160mm x 76mm x 15.5mm
    Weight 295g (with battery)
    Durability
    Drop Specification Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across theoperating temperature range
    Sealing IP65 per IEC sealing specifications
    Environmental
    Operating temperature -20°C to 50°C
    Storage temperature - 20°C to 70°C (without battery)
    Charging temperature 0°C to 45°C
    Relative Humidity 5% ~ 95% (Non-Condensing)
    What comes in the box
    The standard package contents  C6200 TerminalUSB Cable (Type C)Adaptor (Europe)Lithium Polymer Battery
    Optional Accessory Hand StrapCharging dockingSeparate handle with one buttonHandle + battery (handle battery 5200 mAh, one button)UHF back clip + handle (5200 mAh, one button)Rubber Bumper

    Cost-effective and high extensional wireless PDA terminal for Multi industry application scenarios
