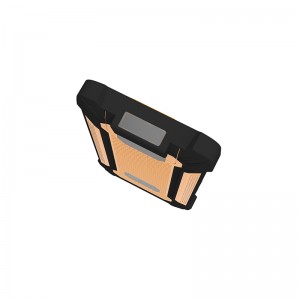

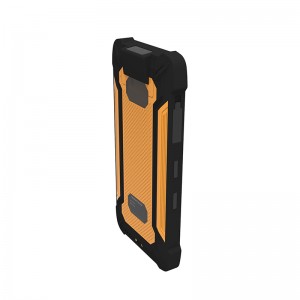

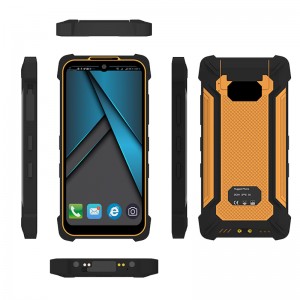

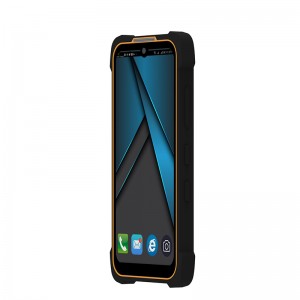

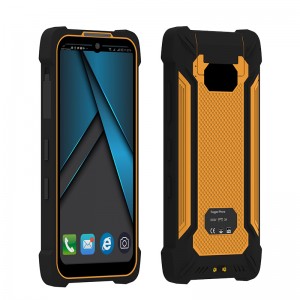

C6300
5.7 inch Rugged Android Barcode Scanner PDA
● MTK6762 (Octa-core 2.0 GHz), Rugged handheld computer
● 5.7inch 720 x1440 Panel with direct optical bonding
● Android 12, GMS available
● Support Bluetooth 4.2 / dual-band WLAN, fast roaming / 4G LTE
● Infrared 1D/2D Barcode Reader for data capture
● Long-lasting removable 4000mAh battery
Function
Introduction
The Hosoton C6300 is a 5.7-inch rugged mobile PDA offering 90% screen to body ratio, featuring versatile functionality with powerful data collection. Specially designed for portability and stability, the C6300 is combined with a compact and durable structure design ,which makes it an ideal tool to increase higher efficiency for applications in the retail, logistic ,warehousing and light-duty Field Service.
Powered by Android 12 OS with GMS
Advanced Octa-core CPU (2.0 GHz) with 4 GB RAM / 64 GB Flash, the C6300 also comes with the GMS service that makes your toughest workdays easier. Just like all Handheld rugged PDAs, the C6300 is an amazingly versatile communication tool. Choose from a broad spectrum of communication technologies, including WLAN, cellular (WWAN), BT and NFC. Workers can connect to each other or the back office, sending, accessing and sharing data and reports seamlessly throughout the workday.
Outstanding Long Range Barcode Reading Technology
Utilizing a premier 2D barcode scanning technologies, the C6300 rugged touch computer enables barcode reading at distances up to 3m* with 4G and WLAN connectivity. It delivers a perfect solution for the warehousing environment that users can enjoy the high performance of barcode reading even from a short or a long distance and optimize work efficiency. Moreover, it strengthens the visibility to capture most 1D / 2D barcodes even in low light or bright light environments.
Tailored Rugged PDA designed for Mobile Workforce
Weighing only 380 grams, the C6300 is an ultra-compact, pocket-sized 5.7inch rugged mobile computer for real-time communications, monitoring, and data capture.Reaching IP65 enterprise protection and withstanding 1.8M drop makes C6300 a perfect tool to maximize data collection, management, and traceability in nearly every practice of transportation & logistics, field service, manufacturing, and more!
All-In-One Functionality for diverse applications
The C6300 integrated professional 1D/2D scanning capability, as well as an integrated HF/NFC RFID reader/writer, GPS, and a high-resolution 13MP camera in a compact mini device. Featuring fastest data speeds with Bluetooth , WiFi dual bands with fast roaming and 4G connectivity, the C6300 is an excellent handheld Android PDA device .
Designed specifically for outdoor work and portability
The C6300 brings the best of a conventional tablet and a traditional rugged handheld PDA in a single device. It has the large-screen functionality of a tablet, with the work-anywhere ruggedness of a handheld. Enjoy an expansive 5.7-inch touchscreen display that’s sunlight-readable . And this winning combination is still lightweight and super slim, making it a perfect rugged phablet to easily bring anywhere. Field workers need a tool that can handle the job anywhere, and last as long as the shift does. And it’s got serious staying power; the robust user-replaceable battery can work even multiple shifts on a single charge.
| Operation System | |
| OS | Android 12 |
| CPU | 2.0GHz, MTK Octa-core Processor |
| Memory | 4 GB RAM / 64 GB Flash |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 5.7inch, TFT-LCD(720×1440) touch screen with backlight |
| Buttons / Keypad | dual dedicated scan buttons; volume up/down buttons; on/off button |
| Camera | Front 5 megapixels (optional), rear 13 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Rechargeable li-ion polymer,4000mAh |
| Symbologies | |
| 1D Barcodes | 1D : UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic |
| 2D Barcodes | 2D  DF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc |
| HF RFID | Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Communication | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20)TDD-LTE (B38/B39/B40/B41) |
| GPS | GPS (AGPs), Glonass, Beidou navigation |
| I/O Interfaces | |
| USB | USB 3.1 (type-C) support USB OTG |
| POGO PIN | Pogo Pin bottom: Charging via cradle |
| SIM Slot | Dual nano SIM Slot or 1*SIM & 1*TF card |
| Expansion Slot | MicroSD, up to 256 GB |
| Audio | One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones |
| Enclosure | |
| Dimensions( W x H x D ) | 150mm x73.4mm x 9.8mm |
| Weight | 380g (with battery) |
| Durability | |
| Drop Specification | 1.5m |
| Sealing | IP65 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | C6300 TerminalUSB Cable (Type C)Adaptor (Europe)Lithium Polymer Battery |
| Optional Accessory | Hand StrapCharging docking |
