Q802

8inch Windows 10 Rugged Tablet PC

● Windows 10
● Intel Jasper Lake processor Celeron N5100
● IP65 Waterproof and Dustproof, MIL-STD-810G certified
● Enhanced rugged corners withstand shock and impact
● High speed communication as 2.4G/5.8G WIFI,4G LTE, BT4.2 and etc
● Thin & lightweight design for easy portability
● Optional high performance 2D imager designed to data capture


Function

Windows 11 OS
Windows 11 OS
8 inch Display
8 inch Display
IP65
IP65
4G LTE
4G LTE
High-Capacity Battery
High-Capacity Battery
QR-code Scanner
QR-code Scanner
GPS
GPS
NFC
NFC
Field service
Field service
Warehousing
Warehousing

Product Detail

Technical Data

Application

Product Tags

Introduction

Take the slim but durable tablet with portability for your market. Powered by a Windows 10 OS, the Hosoton Q802 is an unique lightweight tablet at just 910g, 20 mm thick for easy to move, and fortified with a tough outer casing and an environmental seal. This Q802 rugged tablet is designed with decent performance and great durable features for field service, warehousing, manufacturing, logistics, and transportation.

Tailored Design for harsh working condition

Engineered to perform in any environment, Q802 is rugged enough to drop from 1.2 meters onto concrete. Moreover, it has IP68 certification, completely sealing durable housing against dust and moisture to withstand water jets. Also Q802 comply with sturdy MIL-STD-810G military standards, boasting shock resistance and anti-vibration.

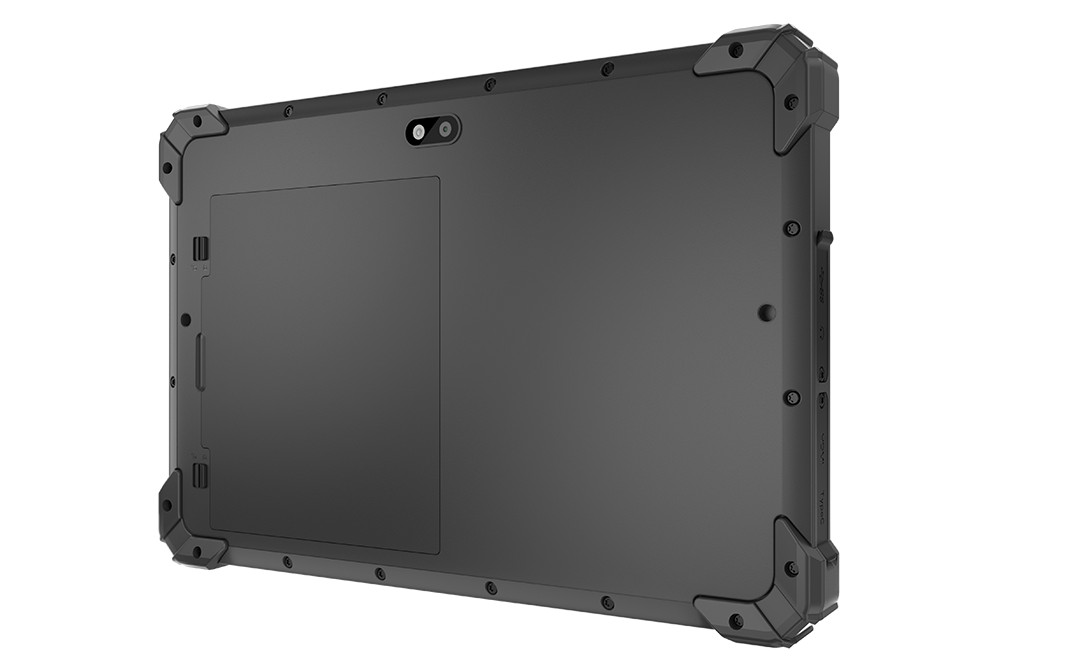

Q802-Mobile-Windows-Rugged-Tablet-PC_05

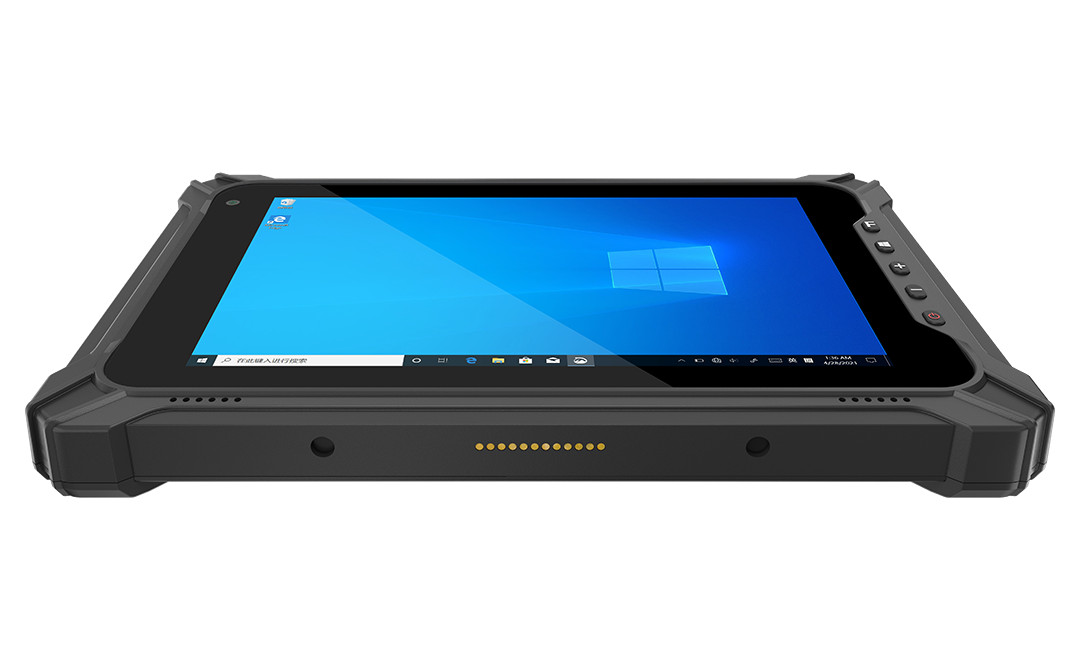

Q802-Mobile-Windows-Rugged-Tablet-PC_06

Stable wireless Connectivity for outdoor operation

Equipped with 4G network, Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 4.2, the rugged 8 inch tablet fulfills high reliability for filed workers to get connected anywhere and offers real-time data transfer. It is easy and fast to record in the workplace with 8-megapixel rear camera and 5-megapixel front camera.

Brilliant 8" Display with Sunlight Readable

Come with a sunlight-readable, high brightness (550 nits) display that responds to the touch commands even with gloves and support wet-touch mode. Moreover, high performance and low power consumption features with Intel® Celeron® Processor N5100 processor, allows users to run multiple programs and works smoothly.

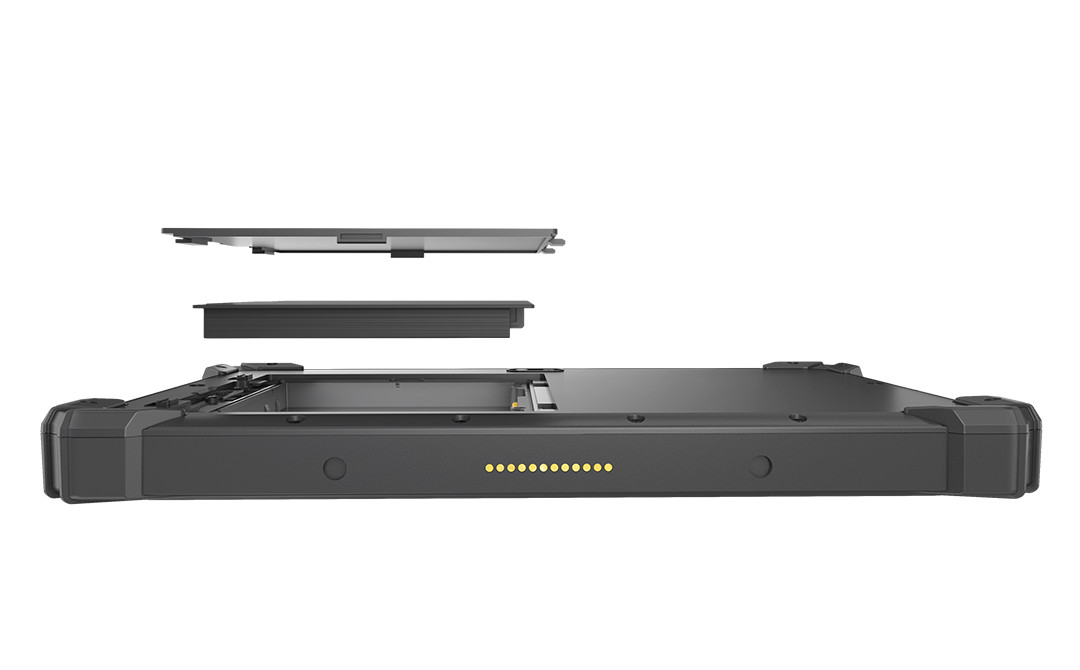

Q802-Mobile-Windows-Rugged-Tablet-PC_07

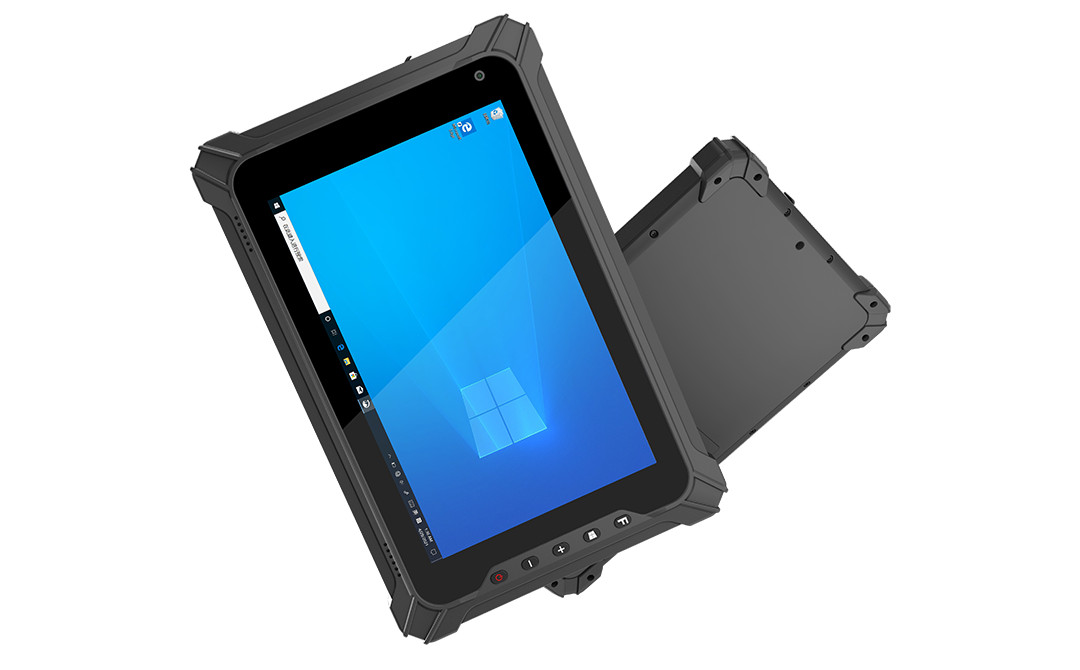

Q802-Mobile-Windows-Rugged-Tablet-PC_08

Versatile Accessories for industries application

The Q802 is equipped with multiple I/O ports (RJ45  Ethernet Port, USB3.0 port, SIM Card Reader, Micro SD, RFID UHF, Replaceable DC jack, Docking connector) and a wide variety of accessories to fit different usage scenarios. Includes various docking solutions such as desktop cradle, vehicle docking station, as well as expansion module options (NFC and RFID Reader, fingerprint scanner ,Infrared barcode scanner). The Q802 tablet supports stylus for quick and accurate on-screen inputs. Beside for more comfortable carrying , Q802 also support Hand Strap that is easily accessible and also helps in avoiding accidental drops.


  • Previous:
  • Next:

  • Operation System
    OS Windows 10 home/pro/iot
    CPU Intel Jasper Lake processor Celeron N5100
    Memory 4 GB RAM / 64 GB Flash (6+128GB optional)
    Languages support English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
    Hardware specification
    Screen Size 8 inch IPS screen, 1920×1200 TFT, 550nits
    Touch Panel Gorilla glass III with 5 points Capacitive Touch Screen
    Buttons / Keypad 5 Function Keys: Power key, volume +/-, home key, cutom key
    Camera Front 5 megapixels, rear 8 megapixels, with flash and auto focus function
    Indicator Type LED, Speaker, Vibrator
    Battery Removable 5000mAh battery & New battery-free working mode
    Symbologies
    HF RFID Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2
    Bar code scanner Optional
    Communication
    Bluetooth® Bluetooth®4.2
    WLAN Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency
    WWAN GSM: 850,900,1800,1900 MHz
    WCDMA: 850/1900/2100MHz
    LTE:LTE FDD: B1/B3/B7/B8/B20,LTE-TDD: B40
    GPS GPS/BDS/Glonass, error range ± 5m
    I/O Interfaces
    USB USB 3.0 Type-A x 1, USB Type-C x 1,
    POGO PIN 12pins Pogo Pin x 1
    SIM Slot SIM Card, TF Card (Three in one card holder)
    Expansion Slot MicroSD, up to 256 GB
    Audio Φ3.5mm standard earphone jack x 1
    RJ 45 Optional
    HDMI *1
    Power AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A(Support power supply without battery adapter)
    Enclosure
    Dimensions ( W x H x D ) 236.7 x 155.7 x 20mm
    Weight 950g (with battery)
    Durability
    Drop Specification 1.2m, 1.5m with boot case ,MIL-STD 810G
    Sealing IP65
    Environmental
    Operating temperature -20°C to 50°C
    Storage temperature - 20°C to 70°C (without battery)
    Charging temperature 0°C to 45°C
    Relative Humidity 5% ~ 95% (Non-Condensing)
    What comes in the box
    The standard package contents Q802 Device
    USB Cable
    Adaptor (Europe)
    Optional Accessory Hand Strap
    Charging docking
    Vehicle cradle
    Car charge
    Shoulder Strap (Optional)
    Carry Bag (Optional)

    Specially designed for field workers under tough working environment both indoors and outdoors. Good choice for fleet management ,warehousing, manufacturing, logistics industry etc.
