Q501
5.5 Inch ultimate windows mobile computer
● Windows 10
● 5.5inch Capacitive Touchscreen
● Long-lasting removable 5000mAh Li battery
● Built-in NFC, 4G LTE, and 2D Barcode Scanner
● Compact & lightweight design for easy portability
● Fully Rugged and Waterproof
Function
Introduction
The Q501 is a powerful and durable mobile device that fits in the palm of your hand. It has endless applications in industries such as logistics, warehouse management, retail, and healthcare. The optional built-in 1D/2D barcode scanner can be used to track inventory, for Barcode Medication Administration, positive patient ID, and point-of-sale applications. The 5” touchscreen is large enough that you can read product or patient data, but the unit is small enough to fit in your pocket. The Q501 is IP65 rated and MIL-STD-810G drop and shock proof. The 5000mAh battery is easily removable and can be charged with the optional desktop cradle, so you can switch the battery to keep the tablet running shift after shift.
High Performance with Low Power Consumption
Powered by Intel's processor, the M133 series ultra-rugged tablet offers high performance and low power consumption for some of the most demanding professional-grade applications.
Ultra Rugged Design Built to Survive
Q103 ultra-rugged tablet is built to survive temperature changes, drops, shock, and vibration. Tailored for industrial-grade applications and packed in ultra-rugged magnesium-aluminum alloy housing passed the MIL-STD-810G test withstand the rigors of outdoor environments - water, dust, weather changes, strong. Despite the ruggedness, it also is handy and easy to use with an easy-to-carry ergonomic handle and an optional fold-up kickstand so your worker can transport the device more easily or set it up when watching an instruction or checking operation procedures.
High Technology terminal for industry 4.0
A Windows smart terminal that combines design, toughness and innovation technology, capable of supporting the digital transformation: the fourth industrial revolution.

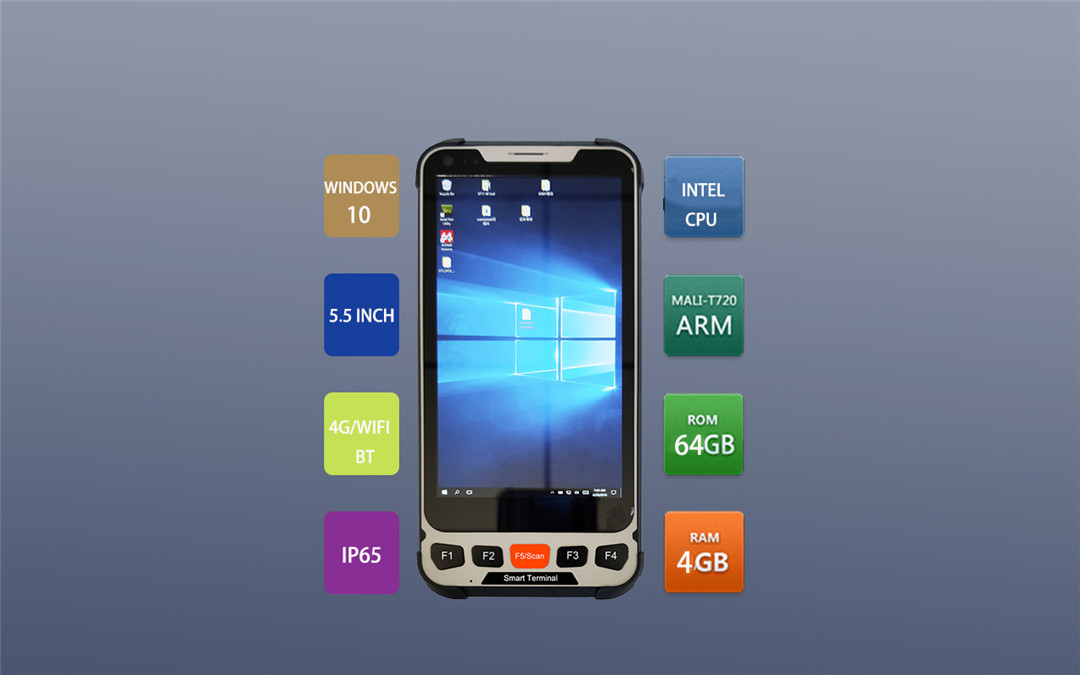

Surprisingly thin and light with high quality resolution LCD and Corning Gorilla Glass for offering the screen brightest, more durable and better at resisting scratches. The Q501 handheld PDA integrates high-speed wireless communication technologies so you can stay connected online anytime, anywhere: dual band Wi-Fi, Bluetooth, 4G LTE communication and many different kinds of satellites for more accurate positioning.
Handheld data capture device
The Industrial PDA comes standard with multiple data collection features, including a USB 3.0 port, MicroSD slot to extend the storage, 1D/2D barcode reader with dedicated SCAN button and, in optional, a powerful RFID reading and writing: near-field communications (NFC).
| Operation System | |
| OS | Windows 10 home/pro/iot |
| CPU | intel cherry trail Z8350 |
| Memory | 4 GB RAM / 64 GB Flash |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 5.5 inch color 1920 x 1080 display ,500 nits |
| Touch Panel | Gorilla glass III with 5 points Capacitive Touch Screen |
| Buttons / Keypad | V+ -, Power, F1, F2, F3,F4,SCAN-KEY |
| Camera | rear 5 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Rechargeable li-ion polymer, 5000mAh |
| Symbologies | |
| HF RFID | Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Bar code scanner | honeywell N3680 |
| Fingerprint scanner | Optional |
| Communication | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20)TDD-LTE (B38/B39/B40/B41) |
| GPS | GPS/BDS/Glonass, error range ± 5m |
| I/O Interfaces | |
| USB | micro USB*1 OTG , 1*USB 3.0 |
| POGO PIN | 8 pin back, included（2USB, 1 RS232， 1 UART， 3.3V, 5V out put）， 5V input8pin on bottom:（1*USB） 5V input |
| SIM Slot | Single SIM Slot |
| Expansion Slot | MicroSD, up to 128 GB |
| Enclosure | |
| Dimensions ( W x H x D ) | 181*88*20mm |
| Weight | 500g (with battery) |
| Durability | |
| Drop Specification | 1.2m, 1.5m with boot case ,MIL-STD 810G |
| Sealing | IP65 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Q501 Device |
| USB Cable | |
| Adaptor (Europe) | |
| Optional Accessory | Hand Strap |
| Charging docking | |
| Vehicle cradle | |
| car holder | |
It is perfect solution for outdoors workers under harsh working environment. Widely used in Hazardous Field ,intelligent agriculture,military, logistics industry etc.
