Q10P

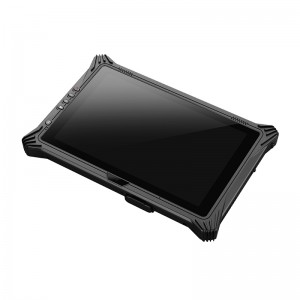

10.1 inch Windows Rugged Vehicle Tablet PC
• Windows 10
• Intel® Celeron® Processor N5105 (up to 2.90 GHz)
• IP65 Waterproof and Dustproof, MIL-STD-810G certified
• Enhanced rugged corners withstand shock and impact
• High speed communication as 2.4G/5.8G WIFI,4G LTE, BT5.0 and etc.
• Thin & lightweight design for easy portability
• Optional high performance 2D imager designed to data capture
Function
Introduction
The Hosoton Q10P is one of the best rugged tablets in 2023. Powered by a Windows 10 OS,Intel® Celeron® N5105 processor,Hosoton Q10P is a portable, versatile and rugged Windows mobile tablet,and fortified with a rugged housing and environmental sealing. It promises to realize the digital transformation that every enterprise is seeking. It is applicable to field service, warehousing, manufacturing, logistics, transportation and other industries.
Tailored Design for harsh working condition
Q10P is designed for working in harsh environments，The Q10P is strong enough to survive a drop from a height of 1.22 meters，Moreover,it features IP65 water and dust protection, along with MIL-STD-810G standard compliance for shock, vibration, and drop.
Powerful performance with Intel processor
The Hosoton Q10P equipped with 4G network, Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 5.0, houses a powerful Celeron® N5105 processor and 8GB of RAM that keeps everything running smoothly. Besides, the tablet offers 128 GB of internal storage, with option to expand it to 512GB.
10.1" Touch display with sunlight readable
The rugged Q10P has a 10.1-inch 1920 x 1200 resolution IPS screen, and 700 nits of brightness can guarantee normal work under direct sunlight. The Q10P also has a hot-swappable function, which makes it work without being affected when changing the battery. This makes the Q10P ideal choice for outdoor use.
1D/2D /Barcode Scanning
13 MP/rear Camera
4G LTE
WLAN /Dual Bands
Bluetooth® 5.0
NFC/RFID reader
Versatile Accessories for industries application
The Q10P is equipped with multiple I/O ports (USB3.0 port, SIM Card Reader, Micro SD, RFID UHF, Replaceable DC jack, Docking connector) and a wide variety of accessories to fit different usage scenarios. Includes various docking solutions such as desktop cradle, vehicle docking station, as well as expansion module options (NFC and RFID Reader, fingerprint scanner ,Infrared barcode scanner，RJ45). Beside for more comfortable carrying , Q10P also support Hand Strap that is easily accessible and also helps in avoiding accidental drops.
| Operation System | |
| OS | Windows 10 home/pro/iot |
| CPU | Intel® Celeron® Processor N5105(up to 2.90 GHz) /Core I5/I7 optional |
| Memory | 8GB RAM / 128 GB Flash (16+256GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| LCD | 10.1 inch IPS 16:10, 1200×1920, 700nits |
| Touch Panel | 10 point G+G capacitive touch screen |
| Buttons / Keypad | 5 Function Keys: Power key, volume +/-, home key,Scanning key |
| Camera | Front 5 megapixels, rear 8 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |

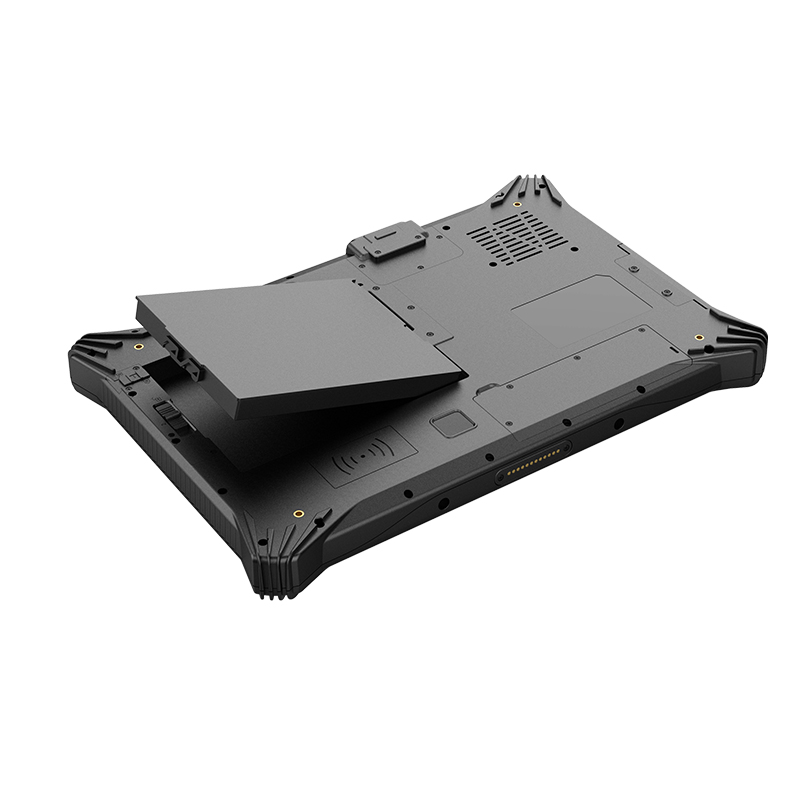

| Battery | Removable 5000mAh battery & Support hot swap mode |
| Symbologies | |
| HF RFID | Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Bar code scanner | Optional |
| Fingerprint | SPI fingerprint (power on login) |
| Communication | |
| Bluetooth® | Bluetooth®5.0 |
| WLAN | Wireless LAN 802.11 a/b/g/n/ac,(2.4GHz/5.8GHz) |
| WWAN | LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 |
| GPS | Built-in GPS, Beidou, glonass |
| I/O Interfaces | |
| USB | USB 3.0 Type-A x 1, USB Type-C x 1, |
| POGO PIN | 12pins Pogo Pin x 1 |
| SIM Slot | SIM Card, TF Card |
| Expansion Slot | MicroSD, up to 256 GB |
| Audio | Φ3.5mm standard earphone jack x 1, Φ5.5mm DC jack x 1 |
| HDMI | *1 |
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A |
| Extension modules（1 out of 4) | |
| Ethernet interface | RJ45 (10/100M) x 1 |
| Serial port | DB9 (RS232) x 1 |
| USB2.0 | USB 2.0 x 1 |
| 2D | EM80, Optical resolution: 5mil/scan speed: 50 times/s |
| Enclosure | |
| Dimensions( W x H x D ) | 289.9 x 196.7 x 27.4mm |
| Weight | 1140g (with battery) |
| Device Color | black |
| Durability | |
| Drop Specification | 1.2m ,MIL-STD 810G |
| Sealing | IP65 |
| Environmental | |
| Operating temperature | -20°C to 60°C |
| Storage temperature | - 30°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Q10P DeviceUSB CableAdaptor |
| Optional Accessory | Hand StrapCharging dockingVehicle MountCar chargeShoulder StrapRemovable Battery |
