C6000
5.5 inch Rugged Handheld Computer for warehousing
● MTK6762 (Octa-core 2.2 GHz), Rugged handheld computer
● 5.5inch 720 x1440 Panel with direct optical bonding
● Infrared 1D/2D Barcode Reader for data collection
● IP65 waterproof and dustproof
● Android 10, GMS certified
● Long-lasting removable 4800mAh battery (Up to 16 hours working time)
● Support Bluetooth 4.2 / dual-band WLAN, fast roaming / 4G LTE
Function
Introduction
The Hosoton C6000 is a 5.5-inch rugged mobile PDA offering 80% screen to body ratio, featuring versatile functionality with powerful data collection. Specially designed for portability and stability, the C6000 is combined with a compact and durable structure design ,which makes it an ideal tool to increase higher efficiency for applications in the retail, logistic ,warehousing and light-duty Field Service.
Powered by Android 10 OS with GMS
Advanced Octa-core CPU (2.0 GHz) with 3 GB RAM / 32 GB Flash (4+64 GB optional)
Google Certification: Android Compatibility Test Suite (CTS ) / Google Mobile Service(GMS)
High Performance laser barcode Scanner for data collection
The C6000 is built-in a megapixel 2D scanning engine (Honeywell N6703) featuring a laser aimer that enables the reading of high-resolution codes (down to 3 mils on Code 39 1D barcode) and it is easy to read EAN 100% at 541 mm distance (typical read range). Moreover, it strengthens the visibility to capture most 1D / 2D barcodes even in low light or bright light environments.

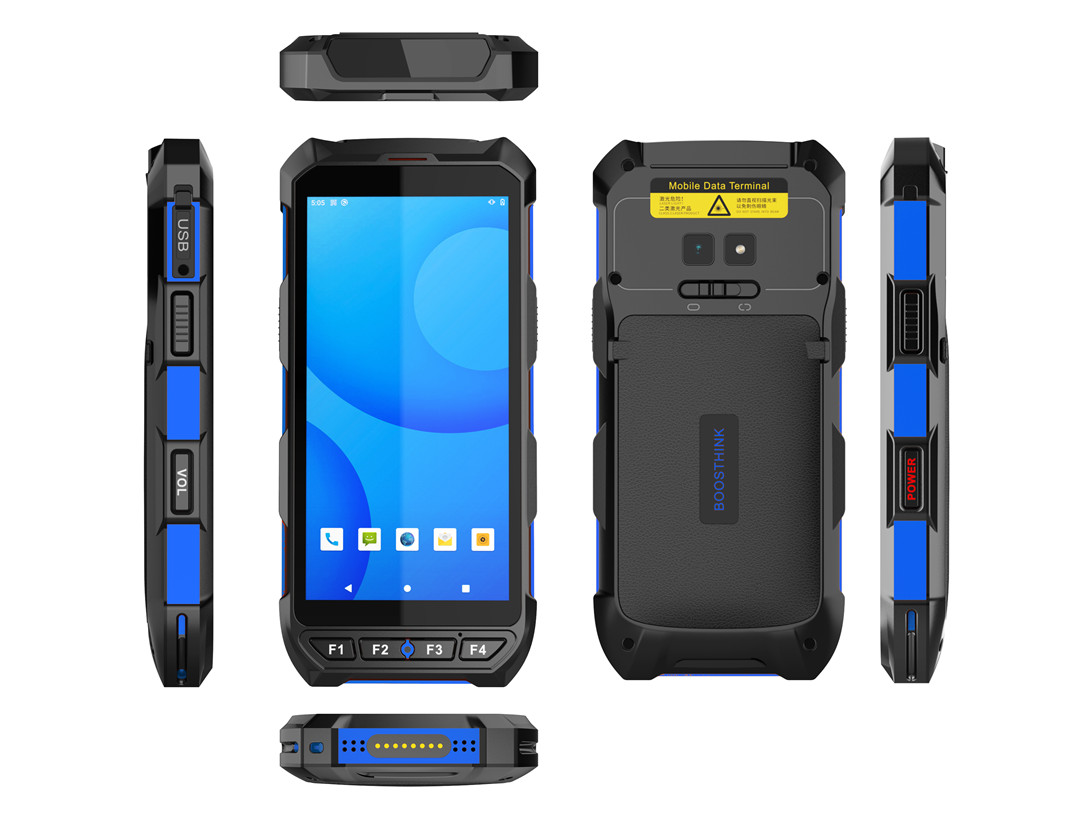

Tailored Compact Rugged designed for Mobile Workforce

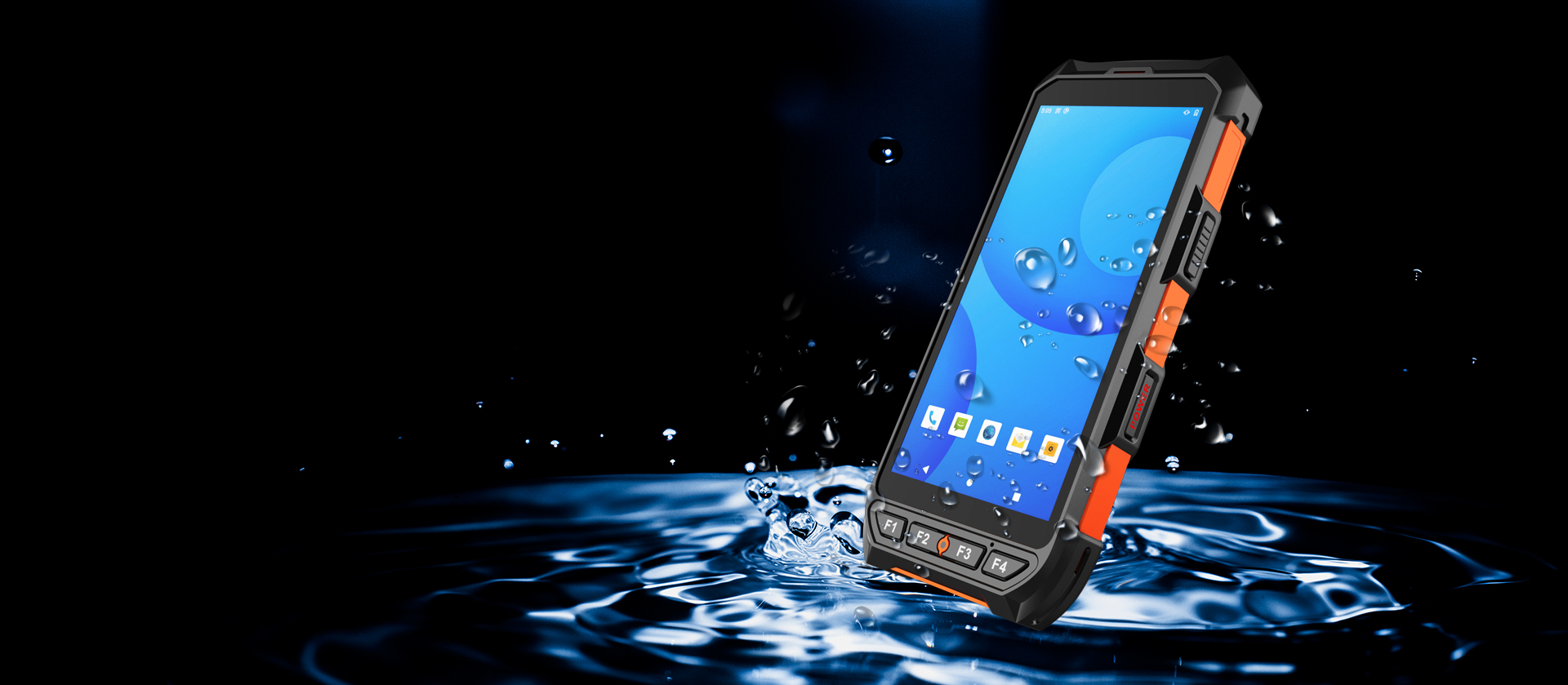

Weighing only 380 grams, the C6000 is an ultra-compact, pocket-sized 5.5inch rugged mobile computer for real-time communications, monitoring, and data capture.And it enhances the industrial durable protection with features including IP65 dustproof, waterproof and 1.2 meters resistant to fall protection.
Long-Lasting Battery Life for filed working
The powerful 4800mAh* battery of the C6000 handheld PDA is designed to have up to 16 hours operating time, giving you the flexibility to work through the whole day.
Up to 16 hours/Operating Time, 4800 mAh/Battery
All-In-One Functionality for diverse applications

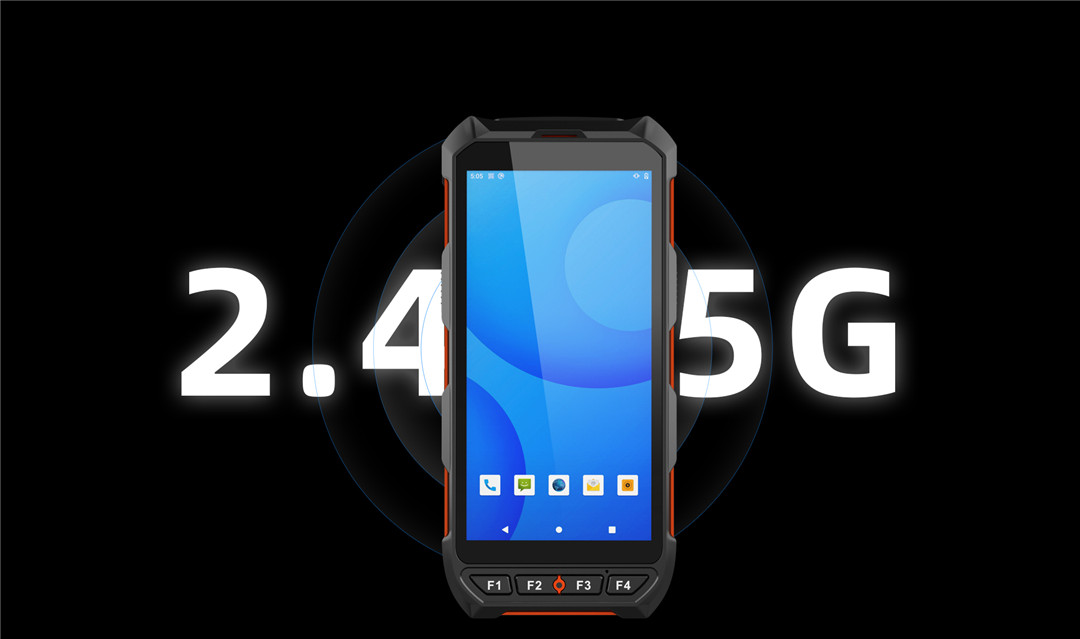

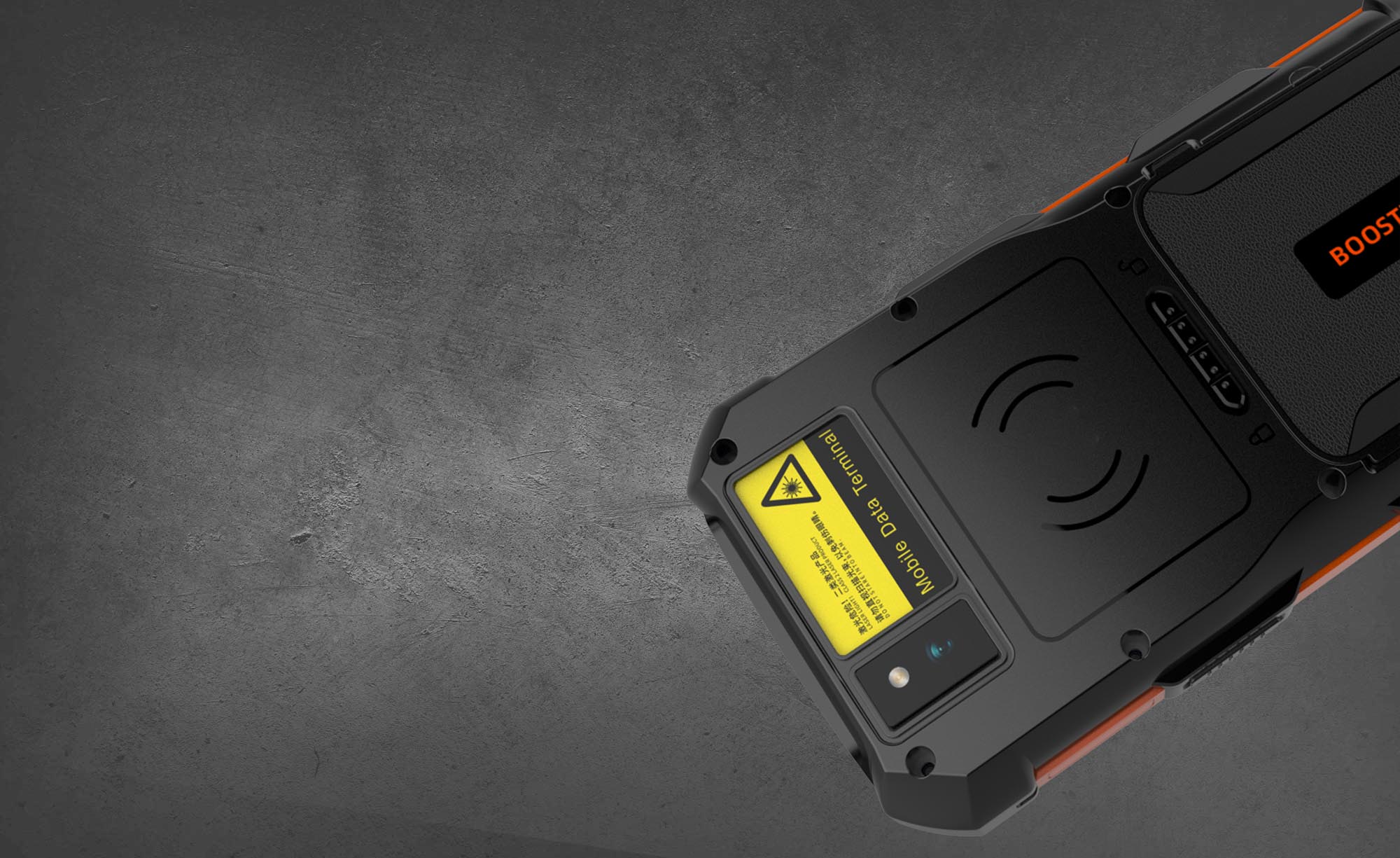

The C6000 integrated professional 1D/2D scanning capability, as well as an integrated HF/NFC RFID reader/writer, GPS, and a high-resolution 13MP camera in a compact mini device. Featuring fastest data speeds with Bluetooth , WiFi dual bands with fast roaming and 4G connectivity, the C6000 is an excellent handheld PDA device .
Ergonomic Gun Grip Design for portability
It is possible to add values to your device with the unique UHF RFID gun grip or 2D long-range gun grip (optional). With the comfortable gun grip, it delivers a convenient way to support standard barcode scanning, RFID scanning or 2D long-range scanning in inventory tracking and taking solutions.
| Operation System | |
| OS | Android 10 |
| GMS certified | Support |
| CPU | 2.0GHz, MTK Octa-core Processor |
| Memory | 3 GB RAM / 32 GB Flash (4+64GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 5.5inch, TFT-LCD(720×1440) touch screen with backlight |
| Buttons / Keypad | 4 keys- Programmable function button; dual dedicated scan buttons; volume up/down buttons; on/off button |
| Camera | Front 5 megapixels (optional), rear 13 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Rechargeable li-ion polymer, 3.8V,7200mAh |
| Symbologies | |
| 1D Barcodes | 1D: UPC/EAN/JAN, GS1 DataBar, Code 39, Code 128, Code 32, Code 93, Codabar/NW7, Interleaved 2 of 5, Matrix 2 of 5, MSI, Trioptic |
| 2D Barcodes | 2D: PDF417, MicroPDF417, Composite, RSS TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, U PostNet, US Planet, UK Postal, Australia Postal, Japan Postal, Dutch Postal. etc |
| HF RFID | Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Communication | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20)TDD-LTE (B38/B39/B40/B41) |
| GPS | GPS (AGPs), Beidou navigation, error range ± 5m |
| I/O Interfaces | |
| USB | USB 3.1 (type-C) support USB OTG |
| POGO PIN | PogoPin bottom: Charging via cradle |
| SIM Slot | Dual nano SIM Slot |
| Expansion Slot | MicroSD, up to 256 GB |
| Audio | One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones |
| Enclosure | |
| Dimensions( W x H x D ) | 170mm x80mm x 20mm |
| Weight | 380g (with battery) |
| Durability | |
| Drop Specification | 1.2m, 1.5m with boot case ,MIL-STD 810G |
| Sealing | IP65 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | C6000 TerminalUSB Cable (Type C)Adaptor (Europe)Lithium Polymer Battery |
| Optional Accessory | Hand StrapCharging docking |
A perfect handheld PDA systems for Multi industry application scenarios
