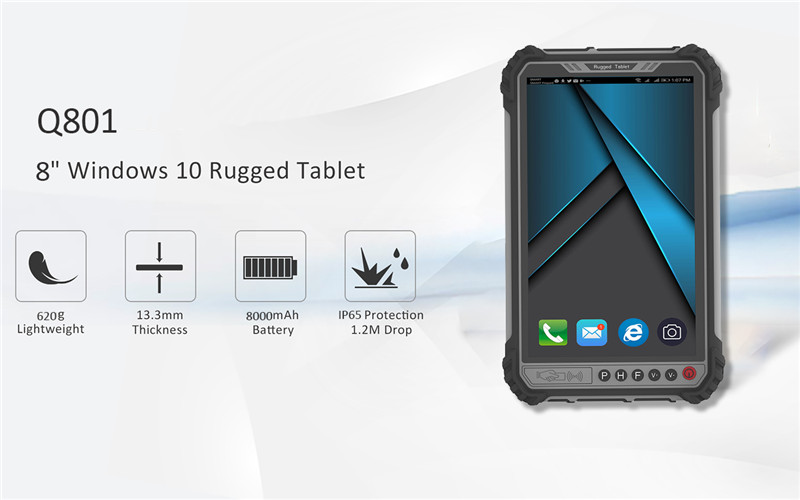

Q801
8 Inch Rugged Tablet PC based on Intel Core i5 processor
● IP65 protect + 1.2M Drop | Durable display with Gorilla glass III | Inter CPU
● Windows 10 with Intel Processor Rugged Tablets
● 8” 1920 x 1200 IPS LED Panel with direct optical bonding
● Rugged: IP65 rated, and Rated for extreme temperature use
● Long-lasting embedded 8000mAh battery

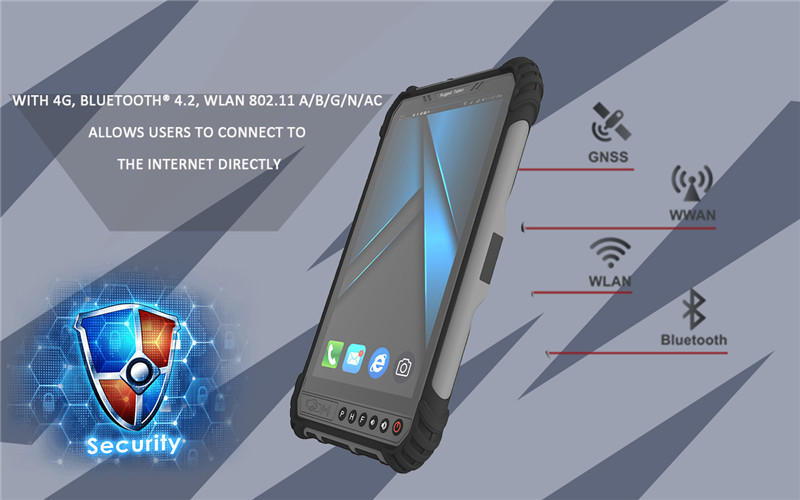

● Support 4G,Bluetooth , Wi-Fi
● Optional 1D/2D Barcode Reader and HF RFID for data collection
● Optional expansion port for USB / RS232 connection
Function
Introduction
The Q801 rugged tablets are housed in durable rubber, with raised corners that protect the tablet from drops and shocks. And it is MIL-STD-810G rated and IP65 waterproof rated, so rain and humidity will not damage the tablet. The Q801 also has a modular expansion port that comes standard with a RJ45 LAN port and has options for a 1D or 2D barcode scanner, a DB9 COM port, or an extra USB port. Other optional upgrade features include a fingerprint reader or NFC. These tablets also have a hot-swappable battery, so you can quickly swap a depleted battery for a charged one, and keep the tablet running 24/7.
The Q801 uses Intel® Atom™ x5-Z8350 (Cherry Trail) processor 1.44 GHz, up to 1.90 GHz with turbo boost technology with a fanless cooling system to provide stable performance and low power consumption. The Q801 supports the latest Windows® 10 IoT Enterprise operating system fulfill increasing industrial applications requirements and providing an alternative solution for those between general consumer-grade and extremely rugged solution.

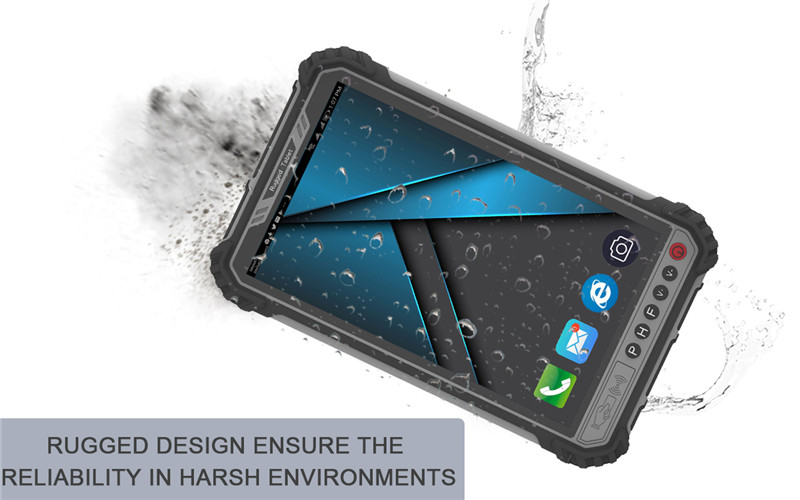

Rugged design ensure the reliability in harsh environments
The Q801 was designed for the abuses of the job. Drops, shocks, spills, humidity, and rain are no match for these tablet PCs even with the isolated active fan used for cooling. The housing is made with durable PC+ABS plastic and coated with double injected rubber including raised corners for enhanced protection. The touchscreen is made with 7H scratch and shatter resistant gorilla glass.
Ready for Windows 11 based on the intel CPU
The Tablet is based on the latest Intel CPU generation, the top pick in the Hosoton products range because it's made for mainstream users who care about performance, speed and graphics. The Core i5 optional, with 8GB RAM, is suitable for most tasks, even heavy applications with SCADA HMI software.
The tablet PC runs on the Windows 10 Professional (or Windows 10 IoT Enterprise on request).
The CPU Intel Core i5 installed onboard support also the next generation of operating system by Microsoft: Windows 11.
Rich interfaces and Expansion Slots
The high performance tablet PC comes standard with multiple data collection features, including USB 3.2 ports, ethernet RJ45 port, serial RS-232 port, high-definition camera, location GPS. The charging system is distinct to the interfaces by one DC-In power jack. In addition, we offer a variety of docking station able to charge the tablet: desktop cradle, wall-mount cradle, or in-vehicle mounting.
And 1D/2D barcode scanner is optional for the rugged tablet, it will be add also a dedicated SCAN button. Otherwise we can embedded NFC reader with screen front reading, or a RFID module for reading and writing the UHF tags. We can also built-in high precision GPS and Fingerprint reader.
Work-friendly accessories with compact structure
You can complement your tablet with a 1D/2D barcode reader, it will be add also a dedicated SCAN button. Otherwise we can built-in NFC reader with screen front reading, or a RFID module for reading and writing the UHF tags. We can also built-in high precision GPS and Fingerprint reader.
And the tablet PC packaging include hand strap, hand holder and the power adapter to battery recharge. There are many optional’s accessories like shoulder straps, anti-glare screen protector, capacitive pen, docking station, etc.
The HOSOTON highly qualified team can also design and manufactur a custom-made accessory by your request..
| Operation System | |
| OS | Windows 10 home/pro/iot |
| CPU | Intel cherry trail Z8350 (core i5 optional),1.44Ghz-1.92GHz |
| Memory | 4 GB RAM / 64 GB Flash (6+128GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 8 inch color 1920 x 1200 display，up to 400 nits |
| Touch Panel | Gorilla glass III with 10 points Capacitive Touch Screen |
| Buttons / Keypad | 8 Function Keys: Power, V+，V-，P, F, H |
| Camera | Front 5 megapixels, rear 13 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Rechargeable li-ion polymer, 7800mAh |
| Symbologies | |
| HF RFID | Support HF/NFC Frequency 13.56MhzISO/IEC14443，ISO/IEC15693，MIFARE，FelicaRead distance：3-5cm，Front |
| Bar code scanner | Optional |
| Communication | |
| Bluetooth® | Bluetooth®4.2 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE:B1/B2/B3/B4/B5/B7/B8/B28TDD-LTE :B40 |
| GPS | GPS/BDS/Glonass, error range ± 5m |
| I/O Interfaces | |
| USB | USB TYPE-A*2 ,Micro USB*1 |
| POGO PIN | Back 16PIN POGO PIN *1Bottom 8PIN POGOPIN *1 |
| SIM Slot | Single SIM Slot |
| Expansion Slot | MicroSD, up to 256 GB |
| Audio | One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones |
| RJ 45 | 10/100/1000M(USB3.0 Transfer) x1 |
| HDMI | Support |
| Power | DC 5V 3A ∮3.5mm power interface x1 |
| Enclosure | |

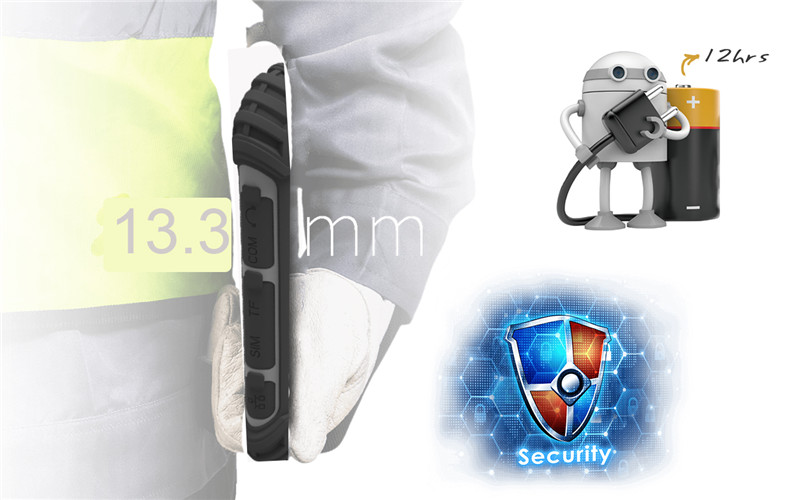

| Dimensions ( W x H x D ) | 228*137*13.3mm |
| Weight | 620g (with battery) |
| Durability | |
| Drop Specification | 1.2m, 1.5m with boot case ,MIL-STD 810G |
| Sealing | IP65 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Q801 DeviceUSB CableAdaptor (Europe) |
| Optional Accessory | Hand StrapCharging dockingVehicle mount |
It is perfect solution for outdoors workers under harsh working environment. Widely used in Hazardous Field ,intelligent agriculture,military, logistics industry etc.
