C7500
4G Android 11 Handheld PDA printer for bill ticketing
● Octa-core 2.2 GHz, Rugged mobile PDA printer
● Android 11, GMS & AER certified
● Built in 58mm high speed thermal printer
● 5.2” IPS LTPS 1920 x 1080, Corning Gorilla Glass
● Optional Infrared 1D/2D Barcode Reader for data collection
● Long-lasting removable 8000mAh battery
● Support PSAM encryption transmission
Function
Introduction

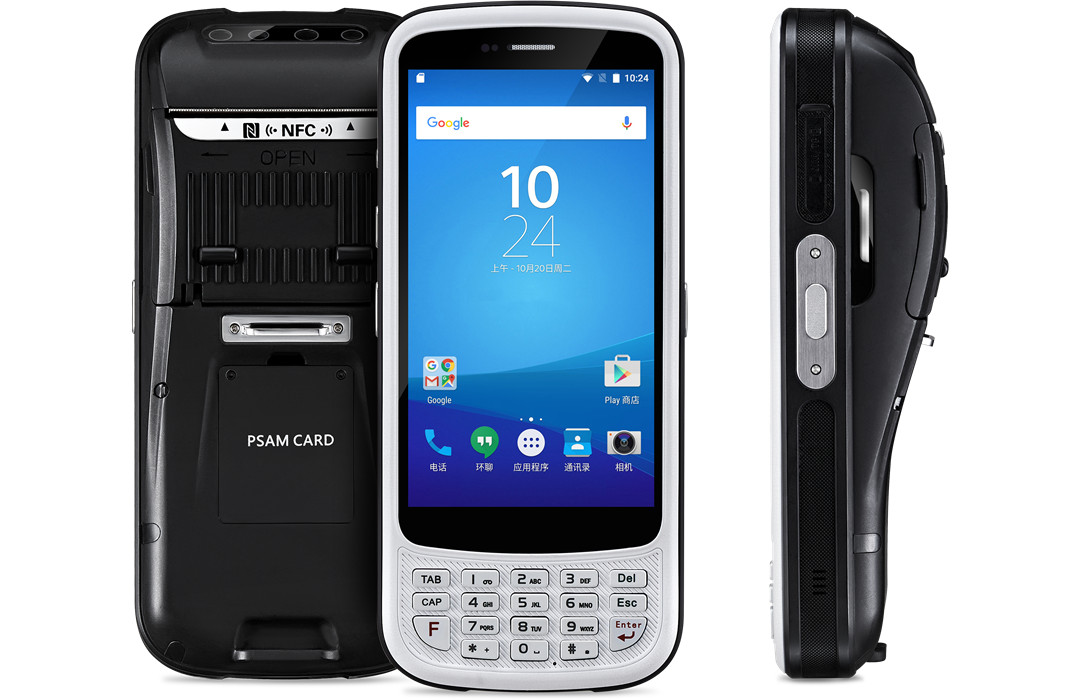

C7500 handheld PDA printer is a multi function device for real-time data capture and receipt ticketing. The powerful features such as integrated mobile thermal printer and efficient data capture make it a preferred PDA terminal in the market. In addition, embedded dual slots for PSAM cards help in easy secure encryption of privacy data. The compact design of C7500 is a perfect combination of multiple function tools used for mobility purposes in various sectors like retail, repast, parking, enforcement etc
New arrival Android 11 secure OS with GMS
Pioneer reliable Octa-core CPU (2.3 GHz) with 3 GB RAM / 32 GB Flash (4+64 GB optional) SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
Portable efficient receipt printing and barcode scanning
The C7500 integrated the high performance thermal printer featuring 30mm diameter compartment that supports fast thermal printing. Meanwhile, it strengthens the strong capability to capture most 1D / 2D barcodes via rear camera or optional laser scan engine.
Unique Compact durable designed for Mobile printing
The C7500 is an ultra-compact, pocket-sized 5.2inch rugged mobile pos printer for real-time communications, digital workflow, and data collection. And it equipped with the industrial rugged housing with features including IP64 dustproof, waterproof and 1.2 meters resistant to fall protection.
Ultimate Battery capability for outdoors working
The powerful 8000mAh* battery of the C7500 wireless PDA printer is designed to have up to 16 hours operating time for all-day productivity, meaning field workers can be better able to focus on the task at hand and use it all day long.
Intelligent handheld PDA solution for Industry 4.0
A android smart PDA terminal that combines design, toughness and innovation technology, capable of supporting the digital transformation: the fourth industrial revolution
Flexible communication and connection not required for waiting
The C7500 features high-speed wireless communication technologies so you can stay connected online anytime, anywhere: dual band Wi-Fi, Bluetooth, 4G LTE communication and many different kinds of satellites for more accurate positioning
| Operation System | |
| OS | Android 11 |
| GMS certified | Support |
| CPU | 2.3GHz, MTK Octa-core Processor |
| Memory | 3 GB RAM / 32 GB Flash (4+64GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| Screen Size | 5.2” IPS LTPS 1920 x 1080 |
| Touch Panel | Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported |
| Buttons / Keypad | 1 power key, 2 scan keys, 1 multifunctional key, numeric Keyboard |
| Thermal Printer | Rate 85 mm/sImage Size (pixel) 384 dotsPaper size 58 mm*30mmPaper Length 5.45 m |
| Camera | rear 13 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Rechargeable li-ion polymer, 8000mAh |
| Symbologies | |
| 2D Barcodes (optional) | Zebra SE4710, Honeywell N6603, Coas IA166S / IA171S |
| PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc. | |
| Iris (optional) | Rate: < 150 msRange: 20-40 cmFAR:1/10000000Protocol :ISO/IEC 19794-6, GB/T 20979-2007 |
| HF RFID | Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2Type:M1 card (S50, S70), CPU card, NFC tags, etc. |
| Communication | |
| Bluetooth® | Bluetooth®5.0 |
| WLAN | Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency |
| WWAN | GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A/B28B/B34/B38/B39/B40/B41 |
| GPS | GPS (AGPs), Beidou navigation, error range ± 5m |
| I/O Interfaces | |
| USB | USB 2.0 Type-C, OTG |
| SIM Slot | 2 PSAM slots at most (ISO7816 protocol), 1 slot for NanoSIM card, 1 slot for Nano SIM or TF card |
| Expansion Slot | MicroSD, up to 128 GB |
| Audio | One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones |
| Enclosure | |
| Dimensions ( W x H x D ) | 186.89 x 83.99 x 35.04-49.49 mm |
| Weight | 507g (with battery) |
| Durability | |
| Drop Specification | Multiple 1.5 m / 4.92 ft. drops (at least 20 times) to theconcrete across the operating temperature range |
| Sealing | IP54 |
| Environmental | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | - 20°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | C6000 TerminalUSB Cable (Type C)Adaptor (Europe)Printing paper |
| Optional Accessory | Carry bag |
A perfect handheld PDA systems for Multi industry application scenarios
