DP02

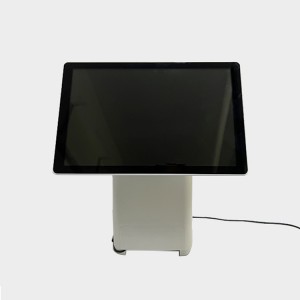

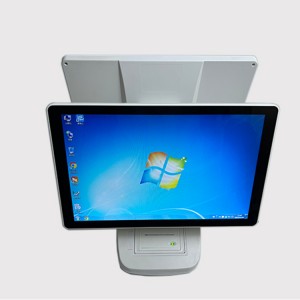

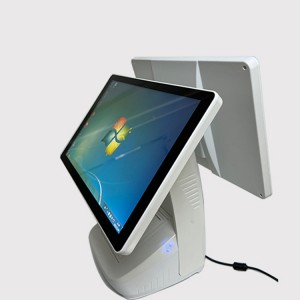

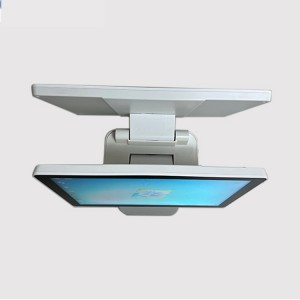

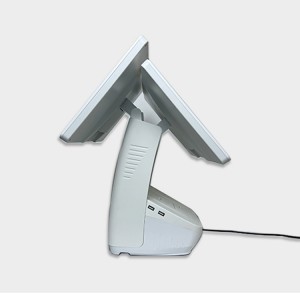

Desktop Dual Screen Windows POS System
● Windows IOT OS
● Embedded 58mm high speed thermal printer optional
● Intel Celeron Bay Trail J1900 , intel core I3 / I5 optional
● 15.6” Dual LCD display , 1366X768, capacitive touch main screen
● Abundant I/O interface for different demands
Function
Introduction
DP02 15.6-inch desktop dual screen pos system of the windows is combined with second display screen for customer-facing monitor touch servicing, the all in one pos terminal able to take any variety of payments and bill more easily in bars, clothing stores, retail stores, hospitality, and clubs.
For a smooth windows point-of-sales machine, DP02 all in one POS solutions integrate the Windows IOT OS and system components into the pos display monitor, and here are various POS accessories optional for retailers in heavy business industries.
And the payment and transaction POS machines are available to meet specific business requirements and equip with all the customized POS hardware components .
Various Modules Enhanced Extensibility
Built in 58mm high speed printer and automatic cutter ;Ports for RJ45*1, USB*6,RS 232*2 , earphones, and more .We believe DP02 is a versatile and functional Desktop POS for businesses with complex needs.
High performance POS hardware
Intel Celeron Bay Trail J1900 processor ,and core i3 and i5 is optional for higher standard .
Customized dual display screen and touch screen options.High quality POS hardware ensures that the DP02 is always working at its best. Our upgraded DP02 touch screen windows POS system also comes with windows 7/8/10 OS and OEM service to provide greater performance.
Performance breakthroughs with advanced technology
15.6 inch Capacitive Touch Screen Resolution: 1366* 768 or 1920*1080P ,also equip with 15.6inch LCD customer display for best service experience. The screen of the Windows POS machine supports multi-point capacitive touch, operation flow, display higher definition, longer service life
All in one cash register for your business
Connect to external POS accessories for more business possibility ,such as cash drawers ,embedded printer and scanners.
As a reliable desktop companion ,DP02 POS system support multiple uses to process orders quickly and efficiently ,such as manage queue numbers, orders, inventory and more.
Easily personalize for your brand
Flexible customization to support second development ,different function modules is available based on customer’s requirements ,such as card reader ,printer ,barcode scanner and cash draw .
And the brand customization ,logo and color customization ,also the boot image could be provided for the OEM orders .
| Display | |
| Main Screen | 15.6 inch touch screen monitor |
| Resolution | 1366*768 ,250cd/m2 |
| View angle | Horizon: 150; Vertical :140 |
| Touch screen | Multi-point projected G+G capacitive touch |
| Customer display | 15.6 inch LCD customer display |
| Performance | |
| Motherboard | Intel Celeron Bay Trail J1900 2.0GHz, or Intel Celeron J1800,intel core I3 / I5 CPU for option |
| System Memory | 1*SO-DIMM DDRIII slot, 4GB DDR3L/1333, 8GB for option |
| Storage device | Msata SSD 64GB or higer, up to 128 GB |
| Audio | On board Real Tek ALC662 |
| LAN | 10/100Mbs,Realtek RTL8188CE Lan chipbuilt in Mini PCI-E slot,support embedded WIFI module |
| Operating System | Windows7/8/10 |
| Options | |
| MSR | optional side MSR |
| Embedded thermal printer | 58/80mm Thermal printer |
| I/O Interfaces | |

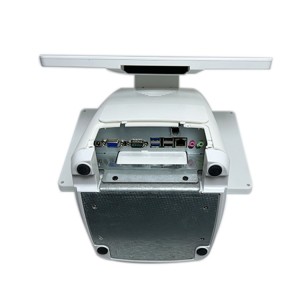

| External I/O port
|
power button*1,12V DC in Jack*1 |
| LAN:RJ-45*1 | |
| USB*6 | |
| 15PIN D-sub VGA *1 | |
| RS 232*2 | |
| line out*1,MIC in*1 | |
| Package | |
| Weight | Net 6.5Kg, Gross 8.0Kg |
| Package with foam inside | 475mm x 280mm x 495mm |
| Environmental | |
| Operating temperature | 0 to 40 degrees centigrade |
| Storage temperature | -10 to 60 degrees centigrade |
| Working humidity | 10%~80% No condensation |
| Storage humidity | 10%~90% No condensation |
| What comes in the box | |
| Power adapter | 110-240V/50-60HZ AC power input ,DC12V/5A output adaptor |
| Power cable | Power cable plug compatible with USA /EU / UK etc and customized available |
