Q102

10 Inch cost-effective rugged industrial Tablet

● IP65 protect + 1.2M Drop | Enhanced durable housing | Octa core 2.0Ghz
● Android 11 security OS
● Rugged IP65 rated, and 1.2 m drop
● Powerful embedded 10000mAh battery
● Support 4G,Bluetooth , Wi-Fi
● 10.1 inch capacitive touch screen
● Cradle and hand strap for customer needs


Function

Android 11
Android 11
10inch Display
10inch Display
4G LTE
4G LTE
GPS
GPS
IP65
IP65
NFC reader
NFC reader
FAP20 level Fingerprint
FAP20 level Fingerprint
QR-code Scanner
QR-code Scanner
High-Capacity Battery
High-Capacity Battery
Logistic
Logistic

Product Detail

Technical Data

Application

Product Tags

Introduction

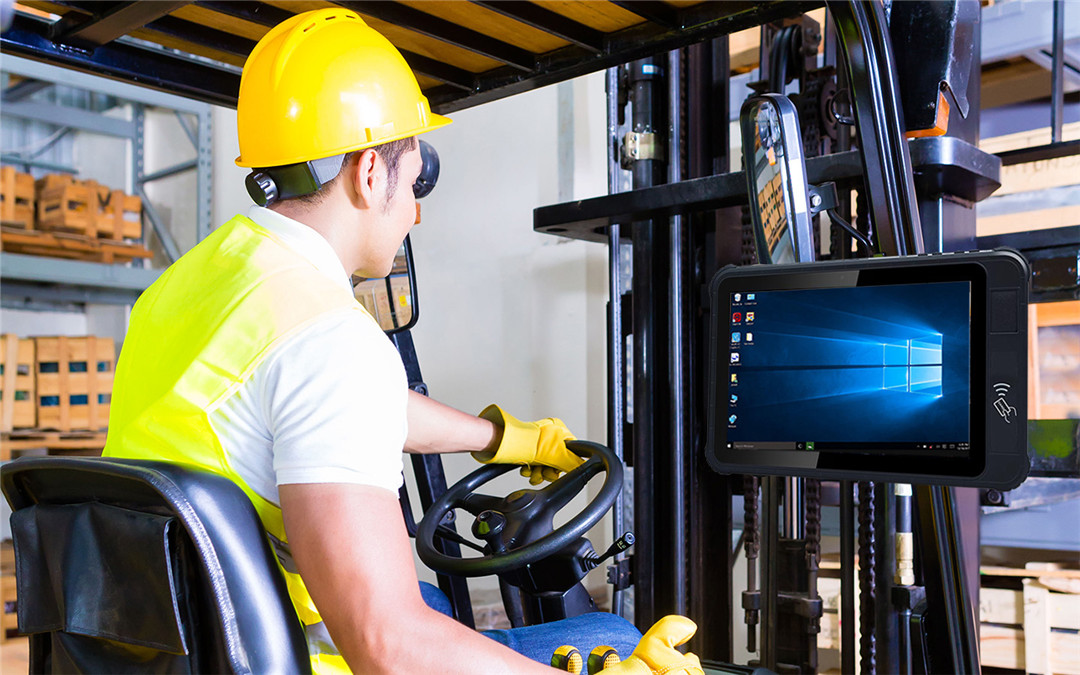

The Hosoton Q102 portable Rugged Tablet is designed for tough environments in industries like construction, transportation, field services, inventory management, and more. The 10inch Gorilla Glass touchscreen is scratch resistant and the tablet meet MIL-STD-810G standards, meaning it can withstand drops, shocks and machine vibrations. The Q102 has extensive connectivity with 4G LTE, WiFi, Bluetooth and GPS. It also quipped an optional infrared barcode scanner, RFID reader and fingerprint scanner embedded right into the unit.And the vehicle/forklift mount or docking station is available for special needs . Built in Type C ports provide versatility for easy access to high speed data transfer connections.

High ruggedness and durability for filed services

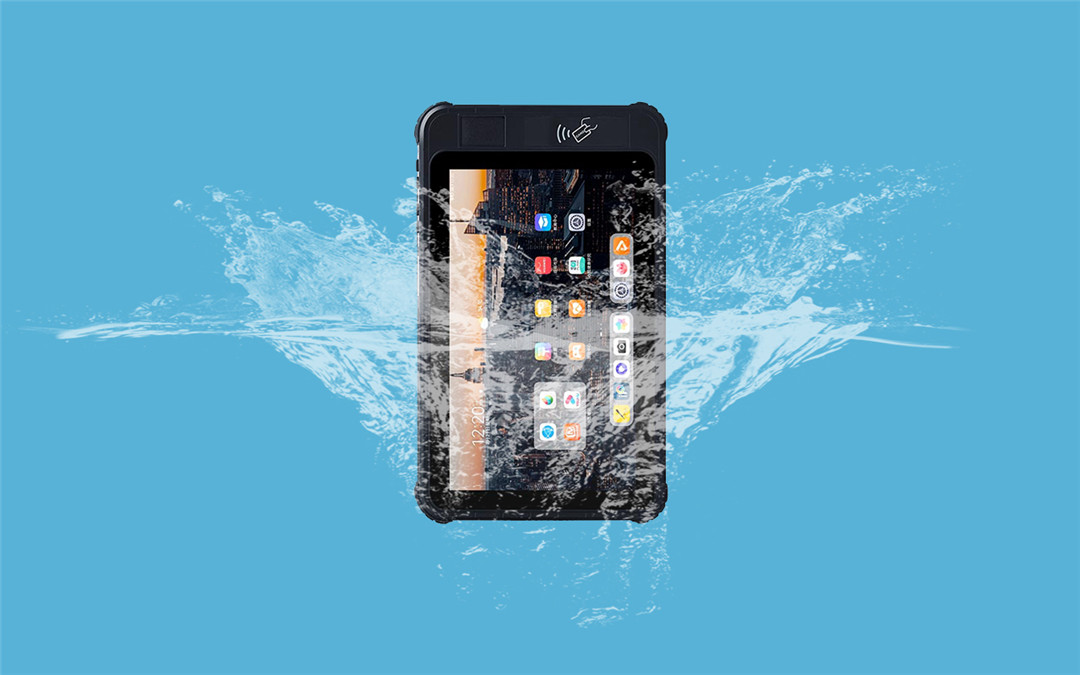

IP65 rating dust and water proof. Q102 comply with IEC sealing specification. it withstands exposure to dust and splashing liquids. And the device could survive falls from up to 1.2m.

Q102-Durable-Android-tablet-forklift
Q102-Durable-Android-tablet-spec

Enhanced PSAM security level too meet financial tax standards

Optional PSAM card slots are available that supports the protocols of ISO7816 and various secure access modes and authorizations .It takes higher security level and cryptography performance to meet demanding applications.

Superior UHF RFID reading and writing for asset inventory

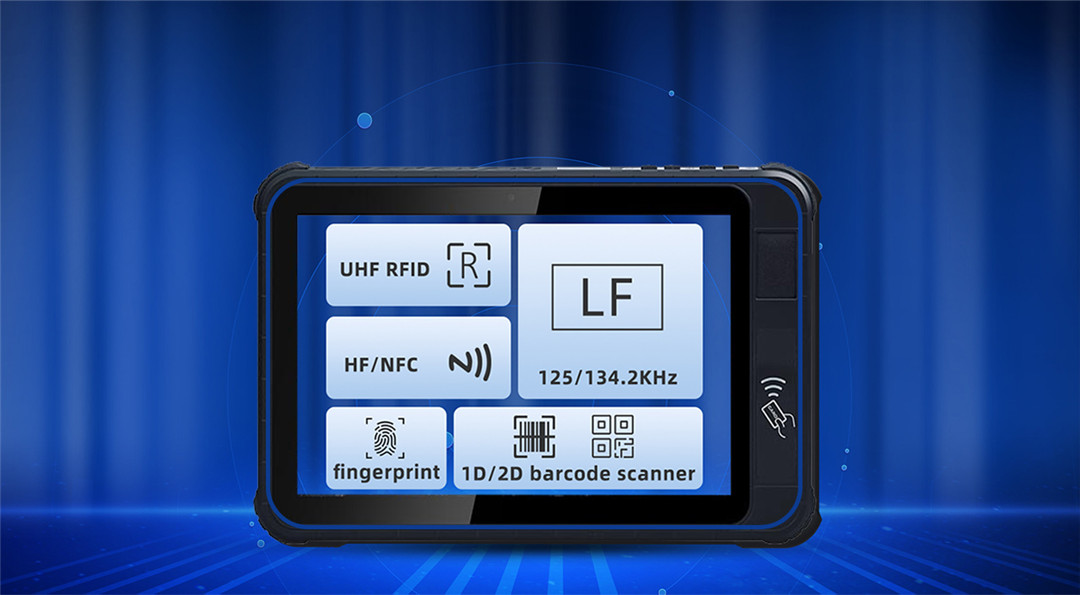

Q102 offer the professional UHF RFID module module possibility, which delivers excellent RFID reading and writing capabilities. Supporting protocols of EPC C1 GEN2 /ISO 18000-6C and various frequency bands, Q102 works with all kinds of RFID tags with high accuracy and speed .And it has been widely applied in asset management, apparel inventory management ,vehicle management ,toll road ,warehousing etc .

Q102-Durable-Android-tablet-Optional-functions
Q102-Durable-IP65-Android-tablet

Accurately fingerprint recognition for biometric data comparison

Special Capacitive fingerprint scanner to adapt all kinds of industry requirements. Equipped a professional fingerprint scanner, which allow to collect and verify the biometric data quickly. When the device captures the fingerprint images, it will be converted ISO data format then submit it to the database of the server for comparison.


  • Previous:
  • Next:

  • Operation System
    OS Android 11
    GMS certified Support
    CPU 2.3 Ghz,MTK6765 processor Octa-Core
    Memory 3 GB RAM / 32 GB Flash (4+64GB optional)
    Languages support English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages
    Hardware specification
    Screen Size 10 inch color (800*1280 or 1920 x 1200) display
    Buttons / Keypad 6 Function Keys: Power key, volume +/-, return key, home key, menu key .
    Camera Front 5 megapixels , rear 13 megapixels, with flash and auto focus function
    Indicator Type LED, Speaker, Vibrator
    Battery Rechargeable li-ion polymer,10000mAh
    Symbologies
    Bar code scanner 1D 2D infrared barcode scan module optional
    Fingerprint scanner optional
    HF RFID Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2
    Communication
    Bluetooth® Bluetooth®4.2
    WLAN Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Dual Frequency
    WWAN GSM: 850,900,1800,1900 MHzWCDMA: 850/1900/2100MHzLTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B12/B17/B20)TDD-LTE (B38/B39/B40/B41)
    GPS GPS (AGPs), Beidou navigation
    I/O Interfaces
    USB USB 3.1 (type-C) support USB OTG
    POGO PIN PogoPin bottom: Charging via cradle
    SIM Slot Dual nano SIM Slot
    Expansion Slot MicroSD, up to 256 GB
    Audio One speaker with Smart PA (95±3dB @ 10cm), One receiver, Dual noise-cancelling microphones
    Enclosure
    Dimensions ( W x H x D ) 305*186*18mm
    Weight 900g (with battery)
    Durability
    Drop Specification 1.2m, 1.5m with boot case ,MIL-STD 810G
    Sealing IP65
    Environmental
    Operating temperature -20°C to 50°C
    Storage temperature - 20°C to 70°C (without battery)
    Charging temperature 0°C to 45°C
    Relative Humidity 5% ~ 95% (Non-Condensing)
    What comes in the box
    The standard package contents Q102 TerminalUSB Cable (Type C)Adaptor (Europe)Lithium Polymer Battery
    Optional Accessory Hand StrapCharging dockingVehicle cradle

    As a tailored industrial solution for filed workers under harsh working environment, it is widely used in Hazardous Field ,intelligent agriculture,military, logistics industry etc.
