Q12

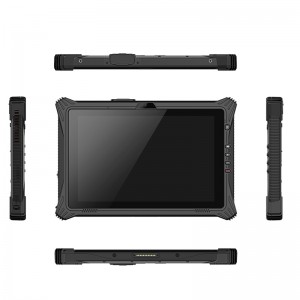

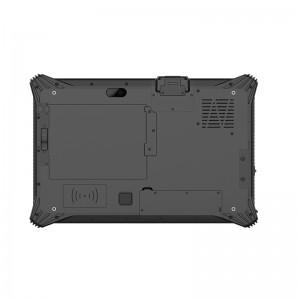

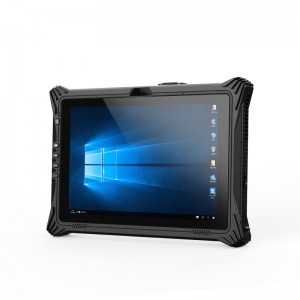

12.2 inch Enterprise-Class Windows Rugged Tablet PC with Intel i7 (12th Gen) Processor
• Windows® 11 Pro 64-bit
• Intel® Core™ i5-1235U / i7-1255U (12th Gen) Processor
• IP65 Waterproof and Dustproof, MIL-STD-810G certified
• Enhanced rugged corners withstand shock and impact
• High speed communication as 2.4G/5.8G WIFI,4G LTE, BT5.0 and etc.
• Thin & lightweight design for easy portability
• Optional high performance 2D imager designed to data capture
Function
Introduction
Featuring 12th Gen Intel® Core™ processor, a IP65 design and 4-feet drop protection, Q12 is engineered to offer the best blend of functionality, performance and reliability for maximized efficiency of today's professional workforce.
Designed for the harshest environments, the Q12 is a compact 12.2" tablet in the fully-rugged class. Its smooth, streamlined exterior and neat form complement its tough image, guaranteeing optimum operational performance in every situation.It is applicable to field service, warehousing, manufacturing, logistics, transportation and other industries.
Tailored Design for Enterprise-class performance
The Q12 offers the latest Intel® 12th Generation processors with Intel® Iris® Xe graphics, delivering outstanding performance and visuals via its neat, compact form. Plus, the high-speed data transmission capability of Intel® Wi-Fi and Bluetooth® V5 provides smooth, congestion-free processing at all times.
Sharp inside and out
When your workstation includes rain, cold, bright sunlight and other environmental challenges, you need a tablet terminal that‘s built for purpose. The Q12 features an 12.2" FHD (1920 x 1200) LCD with high brightness display up to 1,000 nits for exceptional viewing even in direct sunlight. The Q12 has also a 10-point capacitive multi-touch panel with four advanced touch modes, including stylus and glove regardless of work conditions.
Power for the long time working

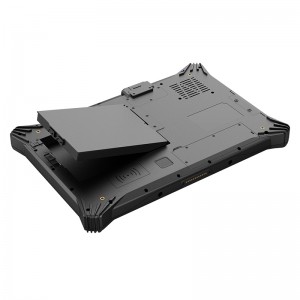

Sustained battery power is critical for ensuring professional operatives remain productive in the field. That’s why the Q12 offers an optional high-capacity removable battery lasting up to 10 hours without a charge.And the rugged tablet support hot swapping mode ,built in a 700mAh battery ,allow the user to replace the spare battery without interrupt the work .
Versatile accessories for data capture
Sustained battery power is critical for ensuring professional operatives remain productive in the field. That’s why the Q12 offers an optional high-capacity removable battery lasting up to 10 hours without a charge.And the rugged tablet support hot swapping mode ,built in a 700mAh battery ,allow the user to replace the spare battery without interrupt the work .
| Operation System | |
| OS | Windows 11 home/pro/iot |
| CPU | Intel Core i5-1235U/i7-1255U (12th Gen) |
| Memory | 8GB RAM / 128 GB Flash (16+256GB optional) |
| Languages support | English, Simplified Chinese, Traditional Chinese, Japanese,Spanish, German, French, Italian, Portuguese, Korean and multiple languages |
| Hardware specification | |
| LCD | 12.2 inch IPS 16:10, 1200×1920, 700nits |
| Touch Panel | 10 point G+G capacitive touch screen |
| Buttons / Keypad | 5 Function Keys: Power key, volume +/-, home key,Scanning key |
| Camera | Front 5 megapixels, rear 8 megapixels, with flash and auto focus function |
| Indicator Type | LED, Speaker, Vibrator |
| Battery | Removable 6300mAh/7.4 battery & 7.4V/700mAh built-in Li-polymer battery |
| Symbologies | |
| HF RFID | Support HF/NFC Frequency 13.56MhzSupport: ISO 14443A&15693, NFC-IP1, NFC-IP2 |
| Bar code scanner | Optional |
| Fingerprint | SPI fingerprint (power on login) |
| Communication | |
| Bluetooth® | Bluetooth®5.0 |
| WLAN | Wireless LAN 802.11 a/b/g/n/ac,(2.4GHz/5.8GHz) |
| WWAN | LTE FDD: B1/B3/B7/B8/B20/B28A WCDMA: B1/B8 GSM: B3/B8 |
| GPS | U-BLOX M8Q ,Built-in GPS, Beidou, glonass |
| I/O Interfaces | |
| USB | USB 3.0 Type-A x 1, USB Type-C x 1, |
| POGO PIN | 12pins Pogo Pin x 1 |
| SIM Slot | SIM Card x1, TF Card x1 |
| Audio | Φ3.5mm standard earphone jack x 1, Φ5.5mm DC jack x 1 |
| HDMI | HDMI 1.4a x 1 |
| Power | AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A |
| Extension modules（1 out of 4) | |
| Ethernet interface | RJ45 (10/100M) x 1 |
| Serial port | DB9 (RS232) x 1 |
| USB2.0 | USB 2.0 x 1 |
| 2D | EM80, Optical resolution: 5mil/scan speed: 50 times/s |
| Enclosure | |
| Dimensions( W x H x D ) | 339.3 x 230.3 x 26mm |
| Weight | 1500g (with battery) |
| Device Color | black |
| Durability | |
| Drop Specification | 1.2m ,MIL-STD 810G |
| Sealing | IP65 |
| Environmental | |
| Operating temperature | -20°C to 60°C |
| Storage temperature | - 30°C to 70°C (without battery) |
| Charging temperature | 0°C to 45°C |
| Relative Humidity | 5% ~ 95% (Non-Condensing) |
| What comes in the box | |
| The standard package contents | Q12 DeviceUSB CableAdaptor |
| Optional Accessory | Hand Strap ,Charging docking ,Vehicle Mount ,Car charge ,Shoulder Strap ,Removable Battery |
