FS215
21.5Inch Self Service Payment Kiosk POS System With Receipt Printer
● Android 14 OS/ Windows 11 OS
● RK3568/RK3576/RK3588 processor , intel core I5/i7 optional
● 4+32GB memory ,easy to expand the memory
● 18.5inch/21.5inch/23.8inch IPS LCD 1920X1080, capacitive touch screen
● Whole alluminum metal floor/table stand
● Easy to assemblly MSR, Binocular camera, NFC reader,barcode scanner
Function
Introduction
The 21.5inch self-service ordering Kiosk POS system is a top performance and multi-functional countertop POS terminal.
It can be easily connected to the optional accessories like cash drawers ,receipt printer and card reader to create a hassle-free check-out experience for your clients.It is possible to match diversified business scenarios ranging from cashier, financial self-attendance, membership management, and etc. At the same time, it also widely used in supermarket, restaurant, street vendors, hotel, shopping mall, lottery and etc
Well-made Self-service Kiosk POS system
Comes with aluminum floor/table/wall stand ,comes with RK3576/RK3588 CPU,Intel Celeron core i5 /i7 is optional for higher performance .Customized A grade big touch screen .High quality all in one POS hardware ensures that the Kiosk terminal is always working at its best. Our upgraded touch screen vending machine also comes with windows 11 OS/Android 14 OS and OEM service to provide greater performance.
Cost-effective Payment Kiosk solution for your business
Connect to external POS accessories for more business possibility ,such as cash drawers ,thermal receipt printer and barcode scanners.As a reliable kiosk pos companion ,21.5inch touch screen all in one POS system support multiple uses to process orders quickly and efficiently ,such as manage queue numbers, orders, inventory and more.
Performance breakthroughs with advanced technology
High performance Intel/RK serial processor,up to 2.2Ghz. Equipped with large-capacity memory of 4GB RAM + 64GB ROM, DS215 Kiosk POS machine allows you to experience unparalleled operation smoothness .

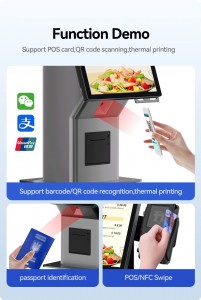

Supports online payment by multi function card reader ;easy to connect 58mm/80mm high speed printer and automatic cutter ;Ports for RJ45*1, USB*4, COM*2, earphones, and more .There is no doubt DS215 is a versatile and functional kiosk POS for businesses with complex needs.
More possibility for branding service

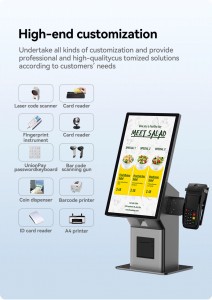

Flexible customization to support second development ,different function modules is available based on customer’s requirements ,such as card reader ,printer ,barcode scanner and cash draw. And the brand customization ,logo and package customization ,also the boot image could be provided for the OEM orders .
| Display | |
| Main Screen | 21.5inch capacitive touchscreen(Option 18.5″/23.8”) |
| Resolution | 1920*1080 ,250cd/m2 |
| View angle | Horizon: 150; Vertical :140 |
| Touch screen | Physical tempered True flat 10 point capacitive/resistive touch screen |
| Performance | |
| Motherboard | RK3568/RK3576/RK3588 ,intel core I5 /I7 CPU for option |
| System Memory | 4GB (Option: 6GB, 8GB) |
| Hard Disk | 32GB/64GB/128GB |
| LAN | 10/100Mbsbuilt in Mini PCI-E slot,support embedded WIFI module |
| Operating System | Android 14OS/Windows 11 |
| Options | |
| MSR | optional side MSR |
| Binocular camera | optional side camera |
| Barcode scanner | optional QR Code scanner |
| NFC reader | Optional side NFC reader |
| I/O Interfaces | |
| External I/O port | power button*1,12V DC in Jack*1 |
| LAN:RJ-45*1 | |
| USB*4 | |
| HDMI *1 | |
| Package | |
| Weight | Net 32Kg, Gross 35Kg |
| Package with foam inside | 990*560*610mm |
| Environmental | |
| Operating temperature | 0 to 40 degrees centigrade |
| Storage temperature | -10 to 60 degrees centigrade |
| Working humidity | 10%~80% No condensation |
| Storage humidity | 10%~90% No condensation |
| What comes in the box | |
| Power adapter | 110-240V/50-60HZ AC power input ,DC12V/5A output adaptor |
| Power cable | Power cable plug compatible with USA /EU / UK etc and customized available |
